Selenit 75 PVC Window Series
New Era in Windows
Selenit Eşik Sistemi, Selenit kapı sistemlerinde kasa alt eşiğinin oluşturduğu yüksekliği ortadan kaldırmak ve estetik bir görünüm elde etmek için tasarlanmıştır. Bu sistemde kullanılan alüminyum eşik profili, iç kısımdaki plastik eşik profili ve eşik çıtası sayesinde eşik sisteminin ısı yalıtım zafiyeti ortadan kaldırılmıştır. Ayrıca, kapı üzerine monte edilen alüminyum damlalık profili yardımıyla dış ortamdan gelebilecek su ve yağmurun hızlı tahliyesi sağlanırken estetik bütünlük de korunmaktadır.
- Suitable for all glass thicknesses from 4 mm to 44 mm thick.
- Acoustic glass option provides sound insulation up to 43 decibels.
- High water tightness is ensured thanks to the design that facilitates water drainage.
- Sash sagging is prevented thanks to the applicability of the hinge support sheet.
- Aesthetic integrity is provided with oval slat structure.
- The specially designed 3-stage gasket system is absolutely air and water tight. The 3 gasket system is available in Selenit Strong and Selenit Selective Strong series with "A" class wall thickness.
- It offers different insulation solutions with single, double and triple glazing beads.
- 6-chambered frame and sash profiles provide excellent thermal insulation.
| Frame and Sash Profile Width / mm | Number of Gaskets / pcs | Number of Chambers / pcs | Sound Insulation / decibel | Air Permeability Class | Water Tightness Class |
|---|---|---|---|---|---|
| 75 | 2 | 6 | 43 | 4 | 9A |
| Profile Thermal Insulation / (W / M2 0K) | Window Thermal Insulation / (W/M2 0K) | Wind Load Resistance Class | Profile Class / TS -5358 / EN 12608 | Glass Thicknesses / mm |
|---|---|---|---|---|
| 1,02 | 0,94 | C3 | B | 20,24,32,42,44 |
Selenit 75 PVC Window Series
EXPERIENCE, TECHNOLOGY AND DESIGN COME TOGETHER IN SELENİT 75
Wind Load Resistance
- While designing Selenit, the strength criterion of PVC profiles, the moments of inertia of the support sheets to be used in the system and the related "wind load resistance" were taken into consideration at the highest rates.
- It offers new solutions that can be safely used for high-rise buildings and the sealing of large openings.
- The grillage profiles of the system easily provide ideal strength values when large openings are required to be closed in terms of architectural design.
- The high strength values of the Selenit System have successfully passed the 3,000 Pa (245 km/h) safety test and entered the C3 class in the wind load classification.
DIFFERENT SOLUTION IN NEW GENERATION BUILDINGS TO SEEKERS
Water and Air Tightness
- In order to keep air and water permeability at minimum levels, Selenit Series is designed with 3 gasket system. The 3 gasket system is valid for Selenit Strong and Selenit Selective Strong series with "A" class wall thickness.
- The prevention of air passage from the external environment to the internal environment, which is required for energy conservation, is reinforced with a center gasket in addition to the standard internal and external gasket.
- Profiles are designed in such a way that rainwater that may leak into the system can be discharged to the external environment by creating slopes and drainage channels on the profile.
- Under 600 Pa (110 km/h) wind load and with 4 liters of rainwater per minute, it did not leak water into the indoor environment and proved its quality.
NOW "HEAT AND SOUND INSULATION" NO PROBLEM
Thermal Insulation
- According to the results of the test conducted in accordance with TS EN ISO 10077-2 standard, with 1,23 m x 1,43 m dimensions and Ug: 0,6 W / m2 °K glass, the Selenite System has reached Uf: 1,02 W / m2 °K -Uw: 0,94 W / m2 °K values.
- The main profiles of the Selenit Series have 6 chambers and the chambers are wide. Thus, the heat conduction coefficient value is reduced to the lowest levels.
- Insulation performance is taken to the best possible level in a pvc window system with the 3rd center seal in Selenit Strong and Selenit Selective Strong series.
- The profile designs of the Selenit Series are made in such a way that the heat conduction coefficient values are at the lowest levels.
Sound Insulation
- The soundproofing properties of the Selenit Series best meet the requirements of a noise-free environment for quality of life.
- It is possible to provide sound insulation up to 43 dB with Selenit window systems.
- Selenit Series provides normal sound levels even in environments with very high sound levels such as airports, railways, etc.
- It is possible to achieve sound insulation levels as high as 43 dB with acoustic glass to be used with the system.

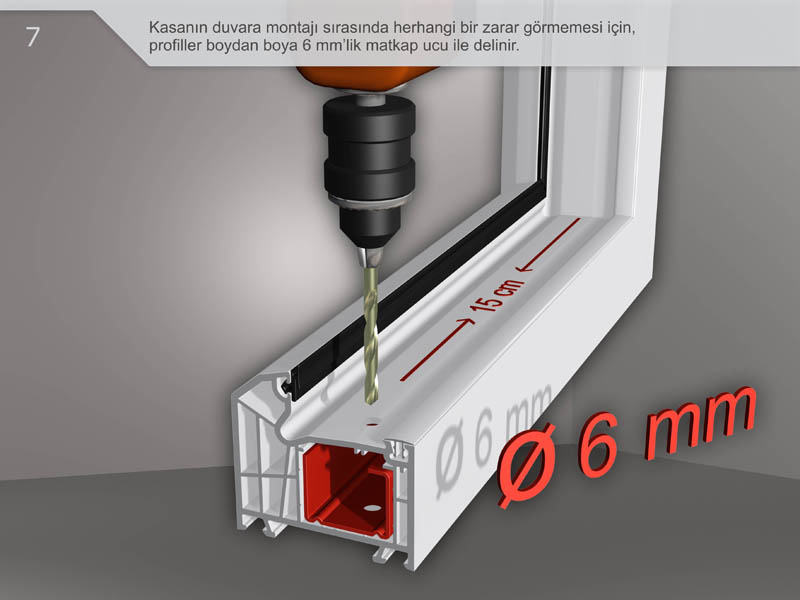

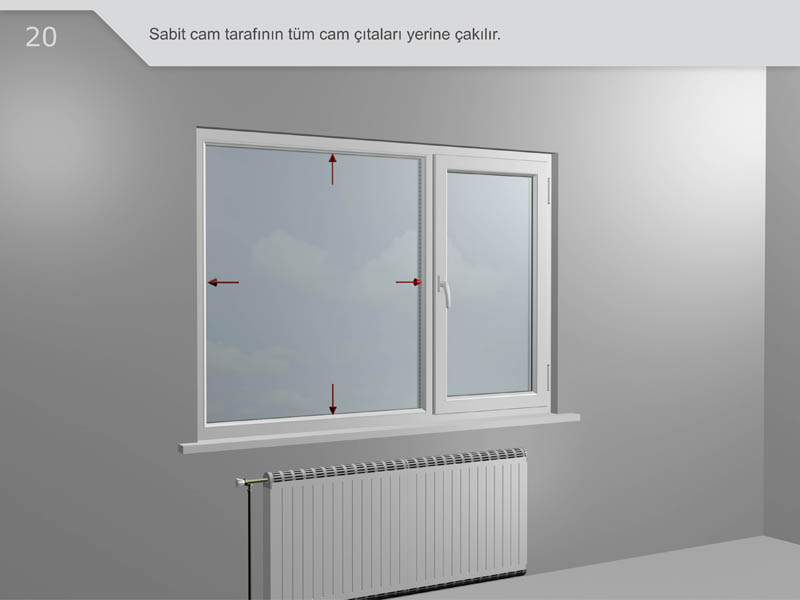

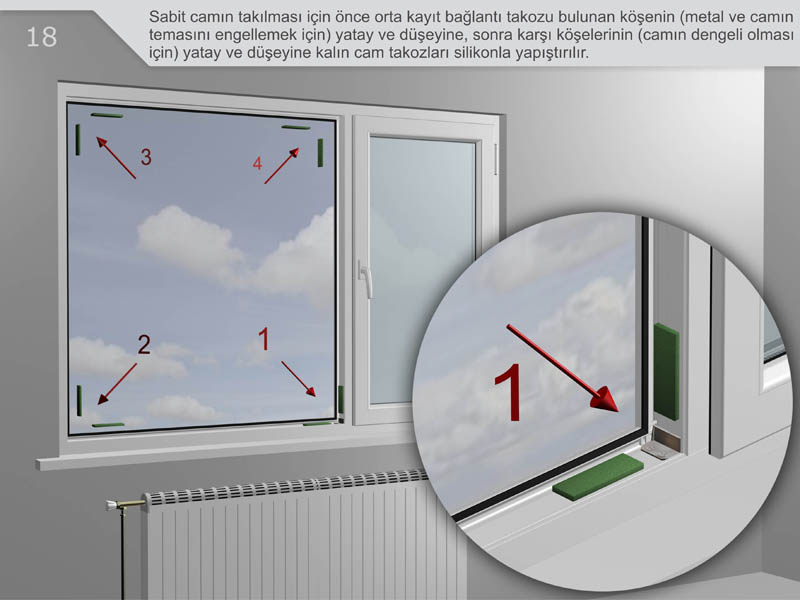

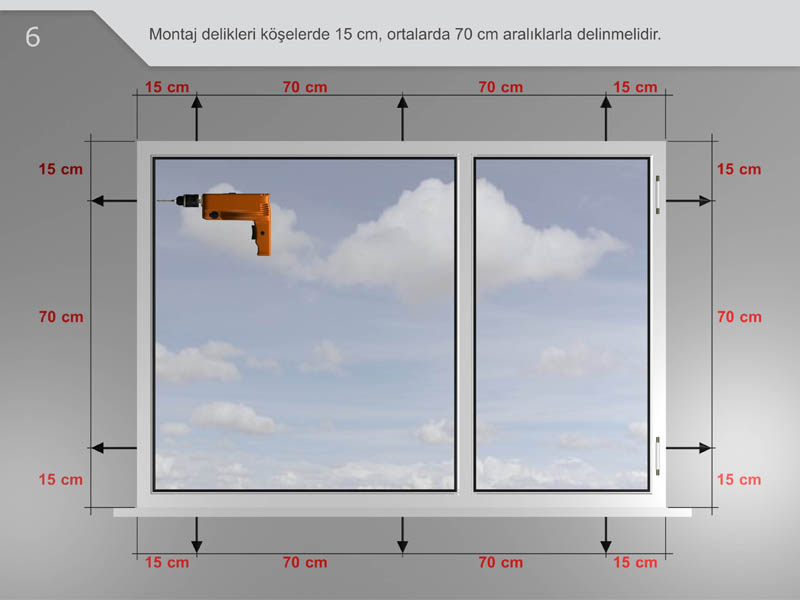

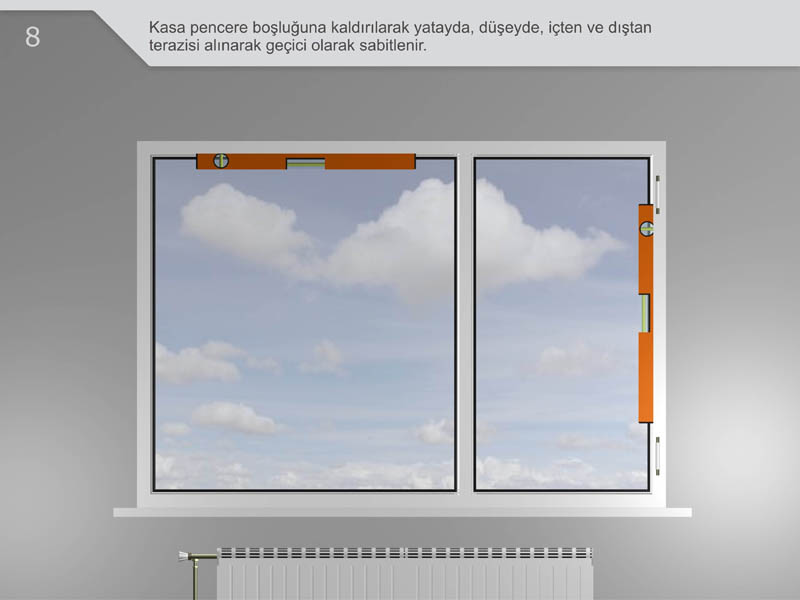

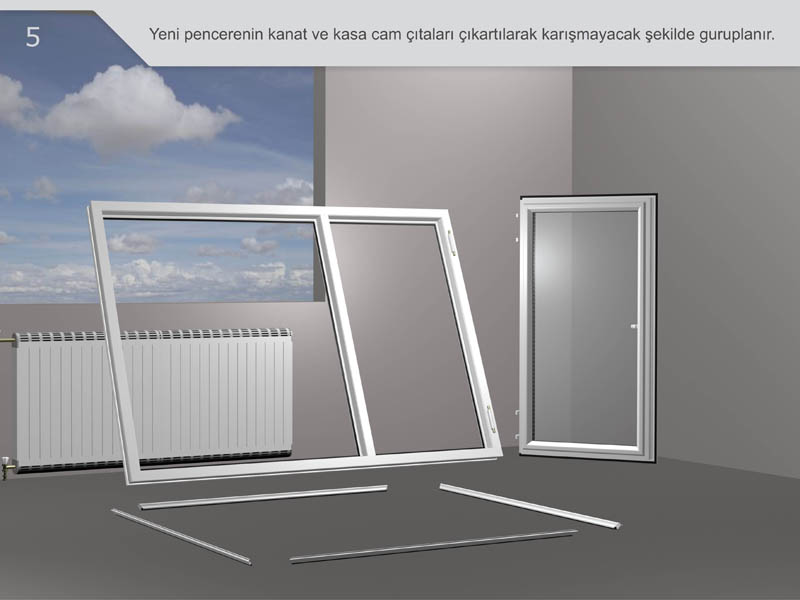

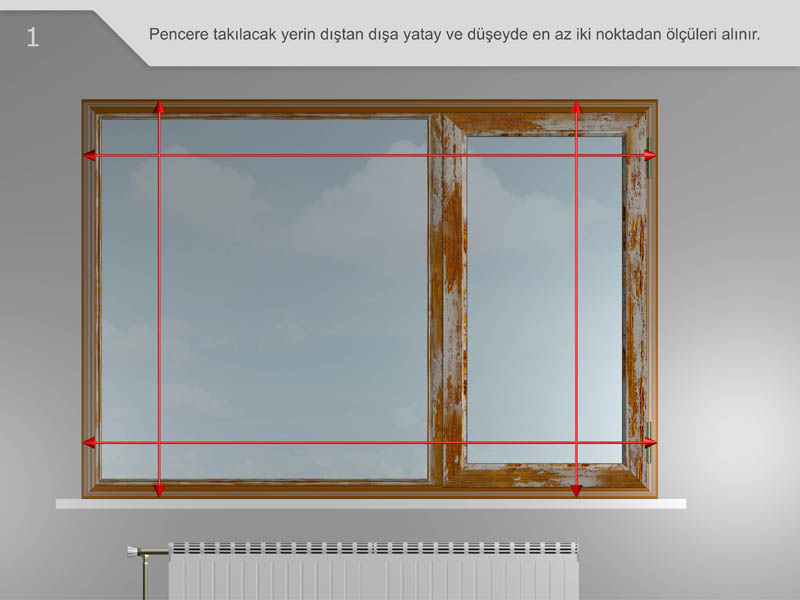

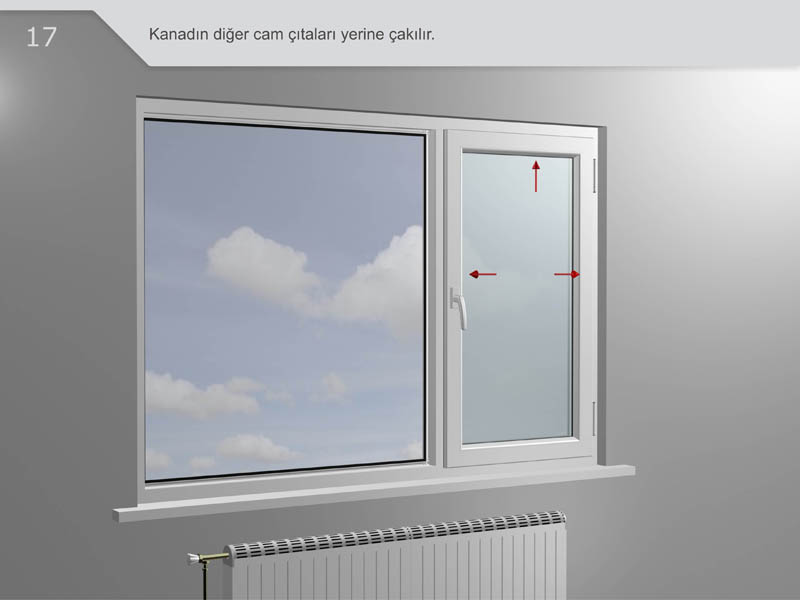

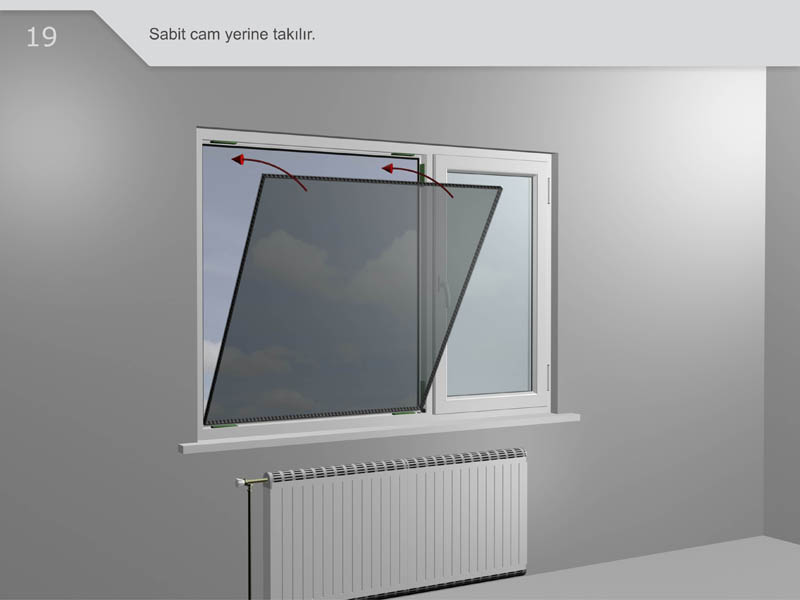

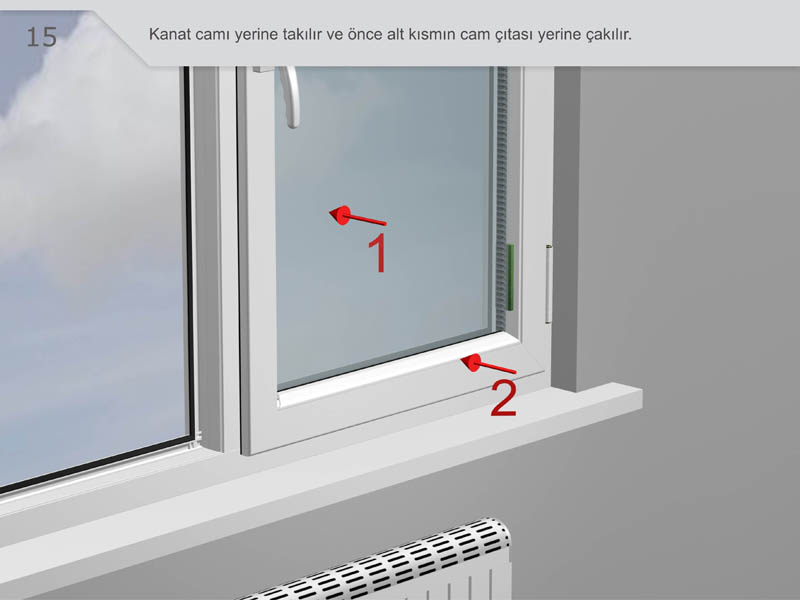

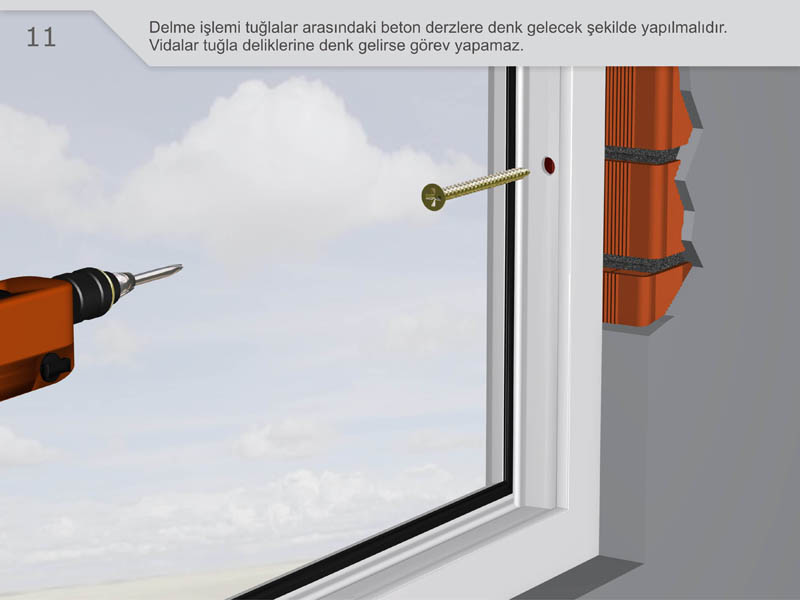

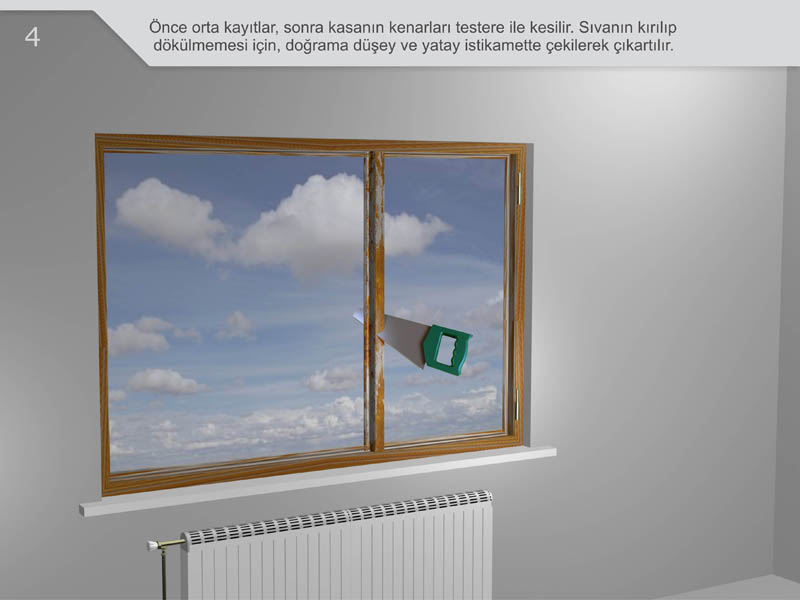

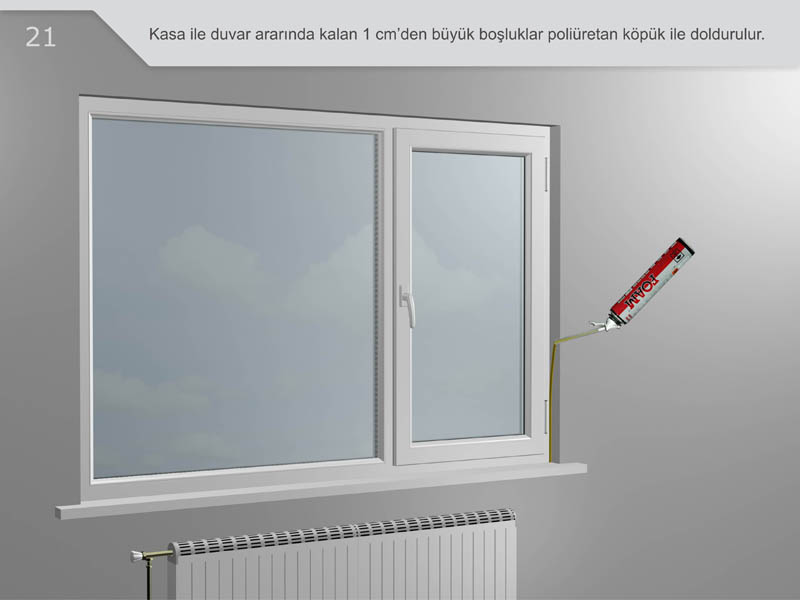

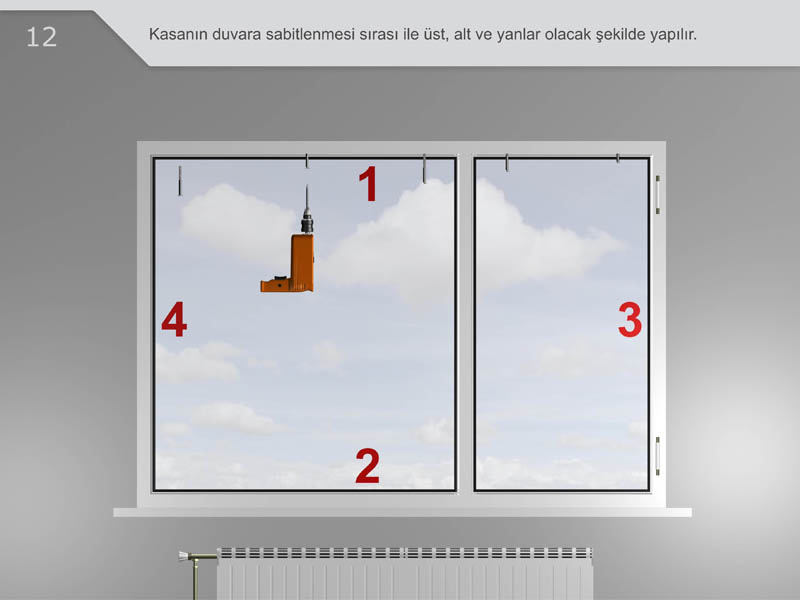

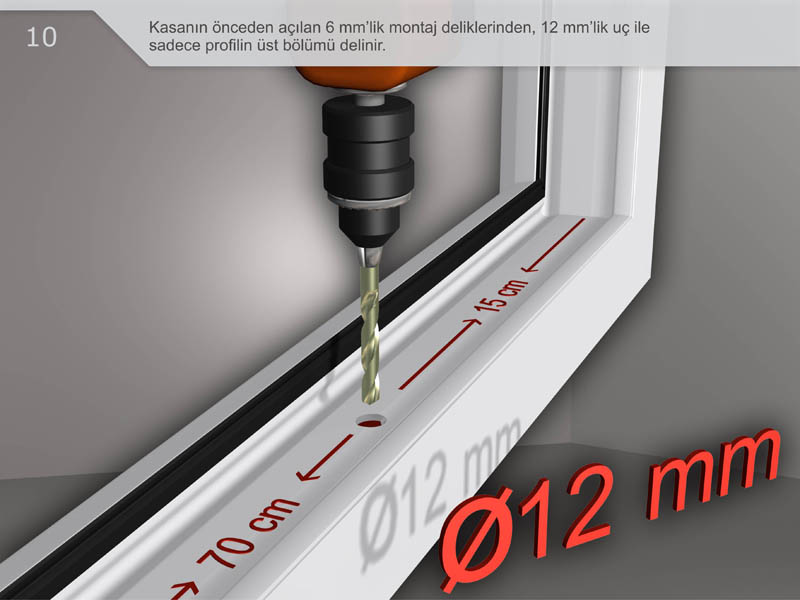

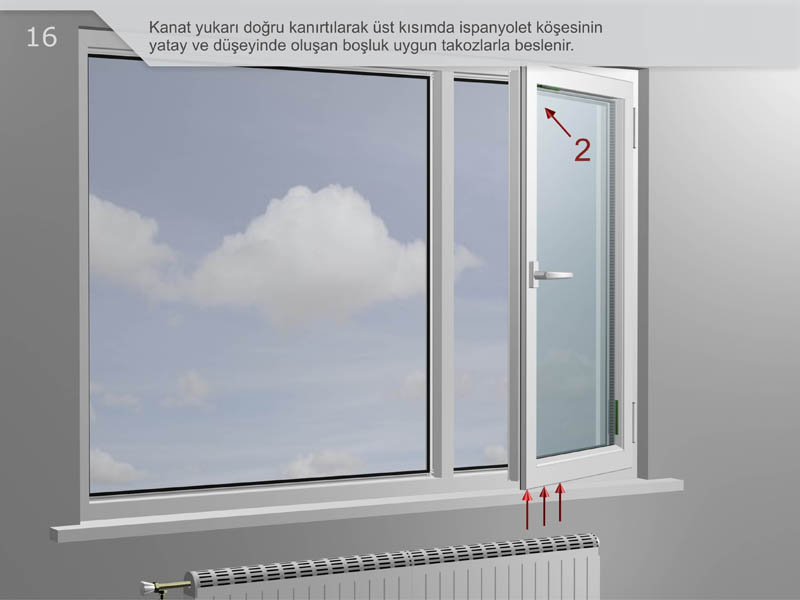

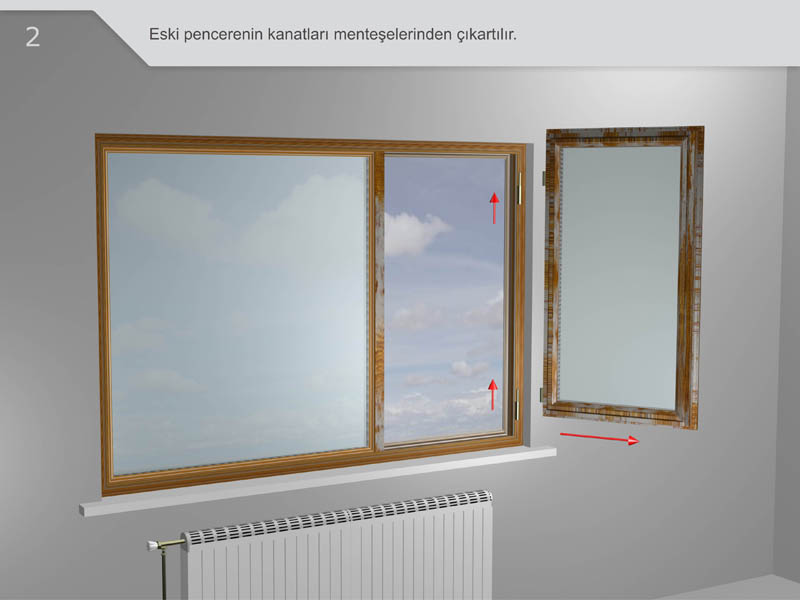

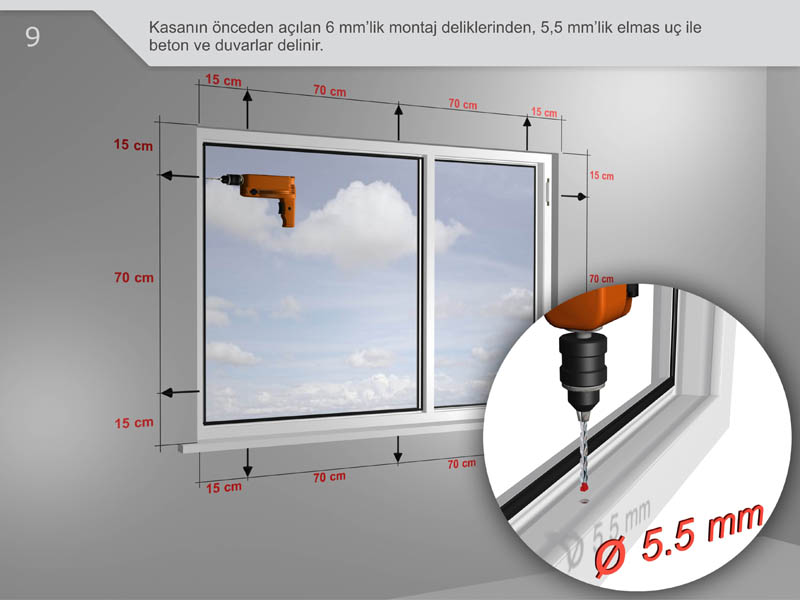

PVC Window Installation Guide

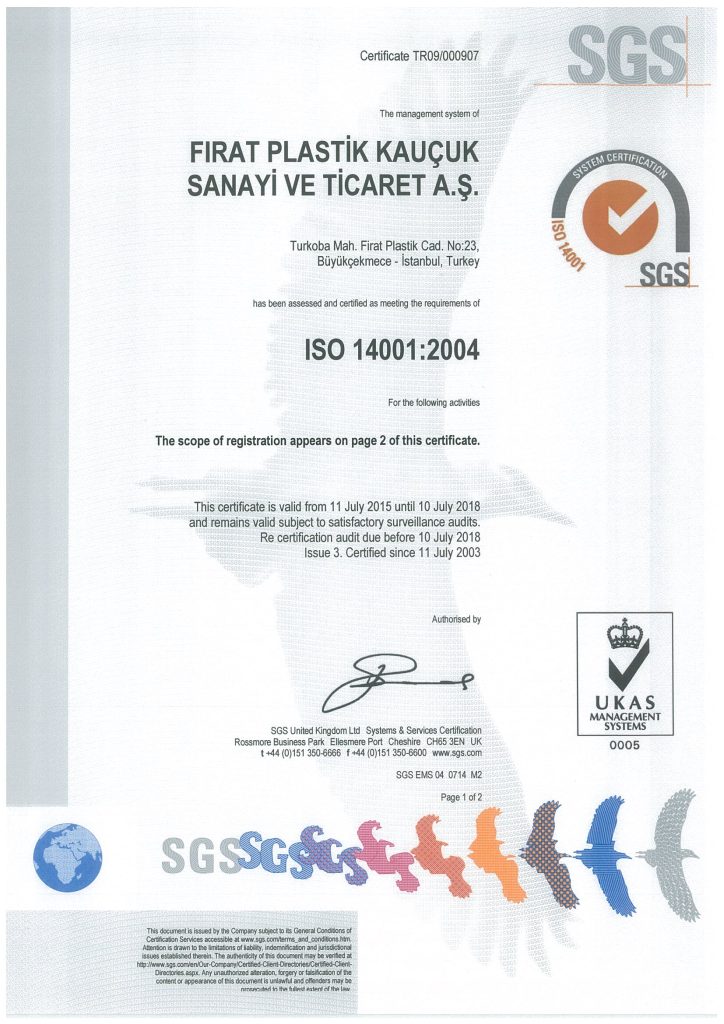

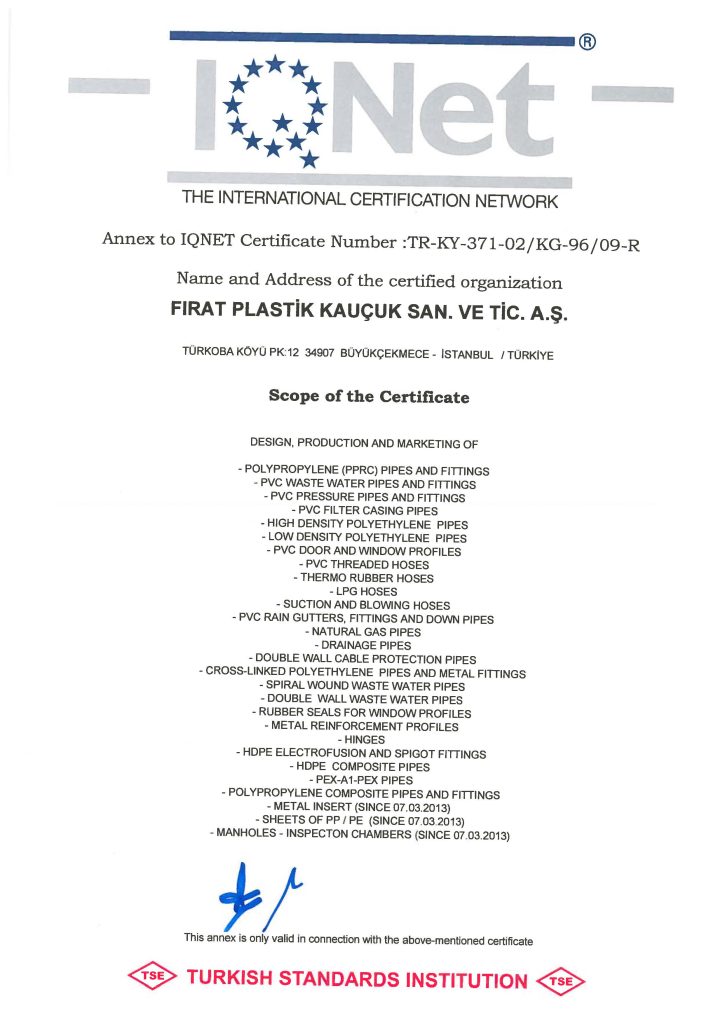

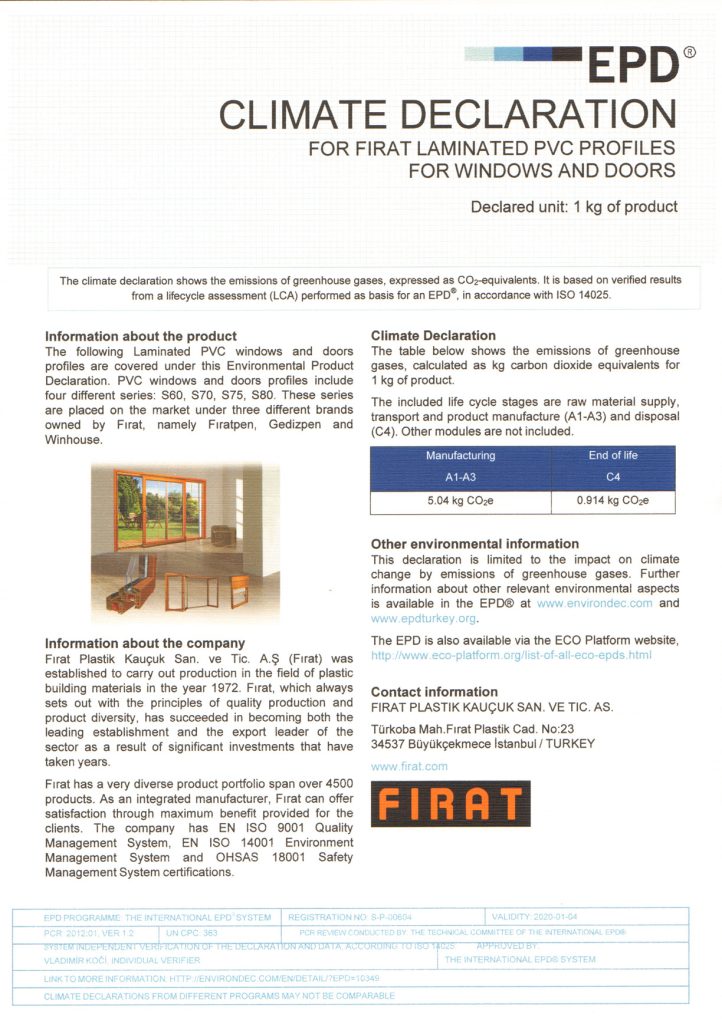

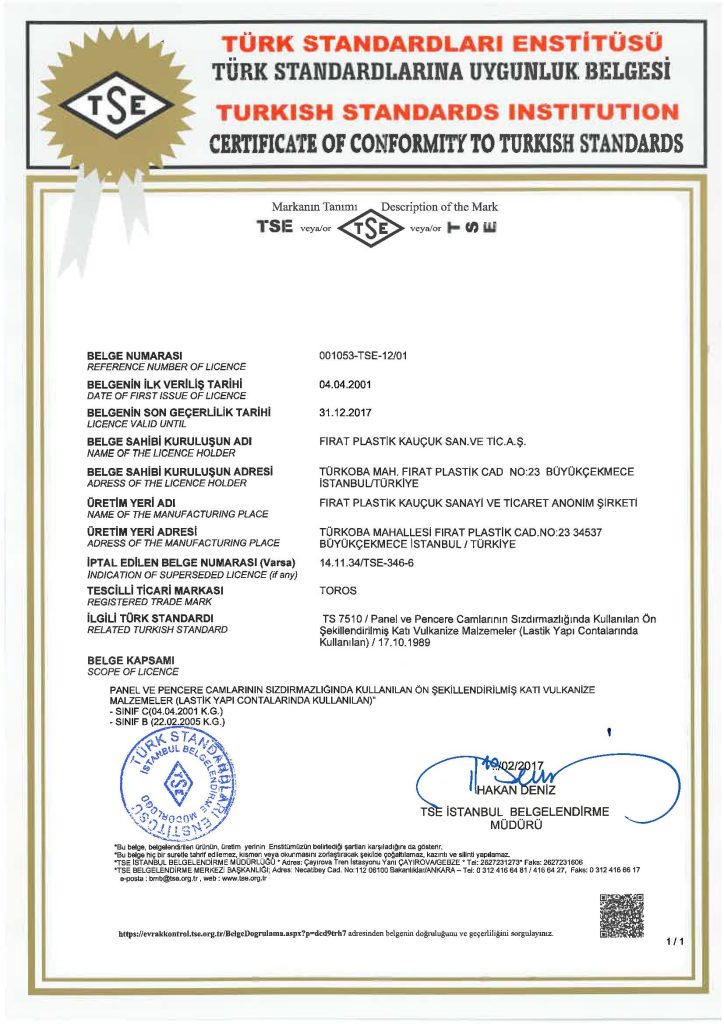

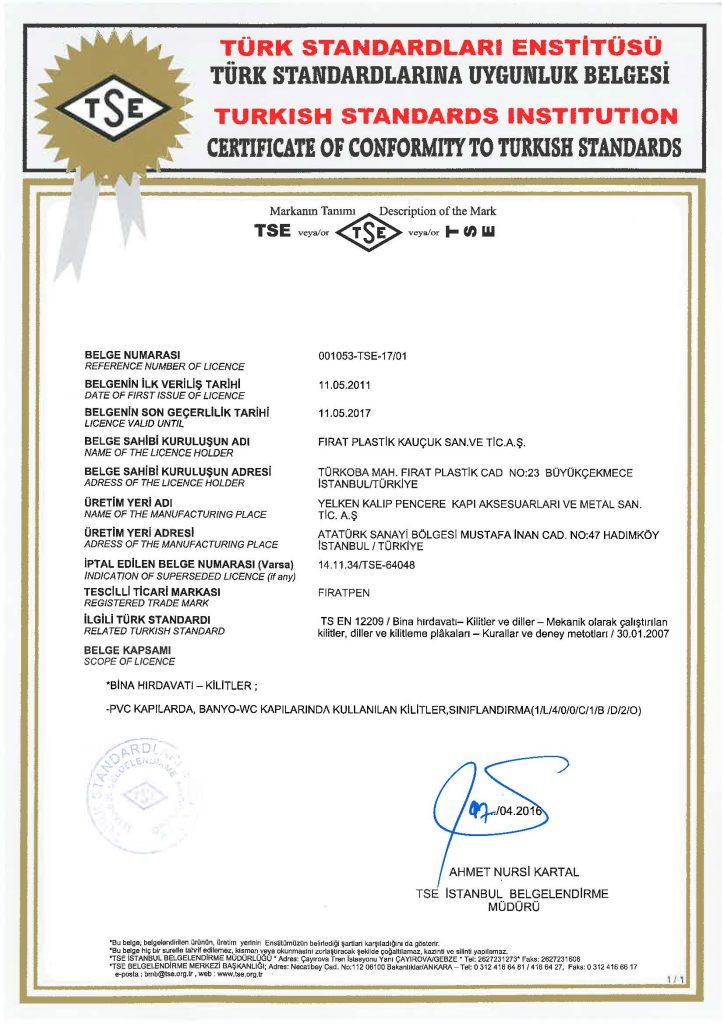

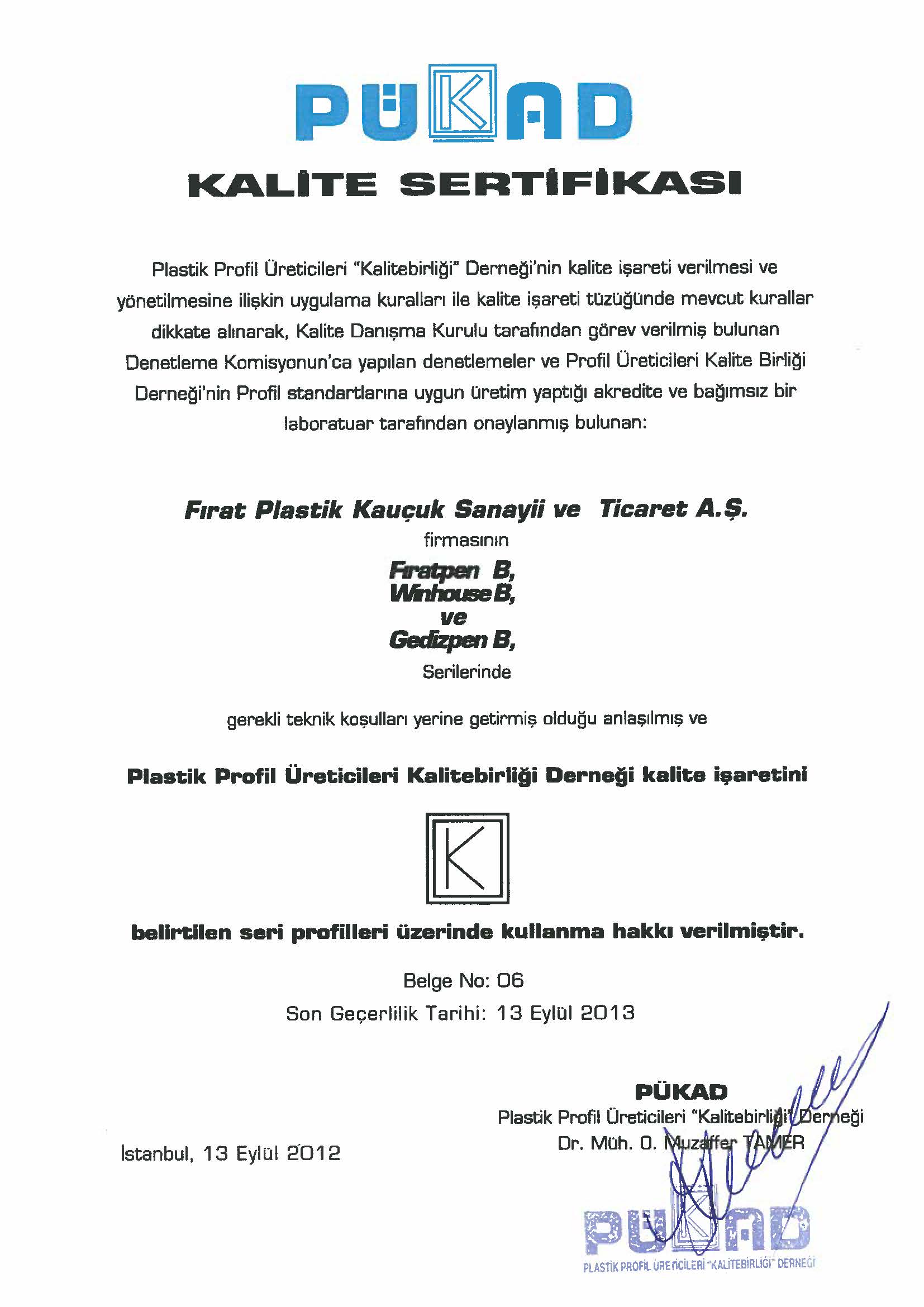

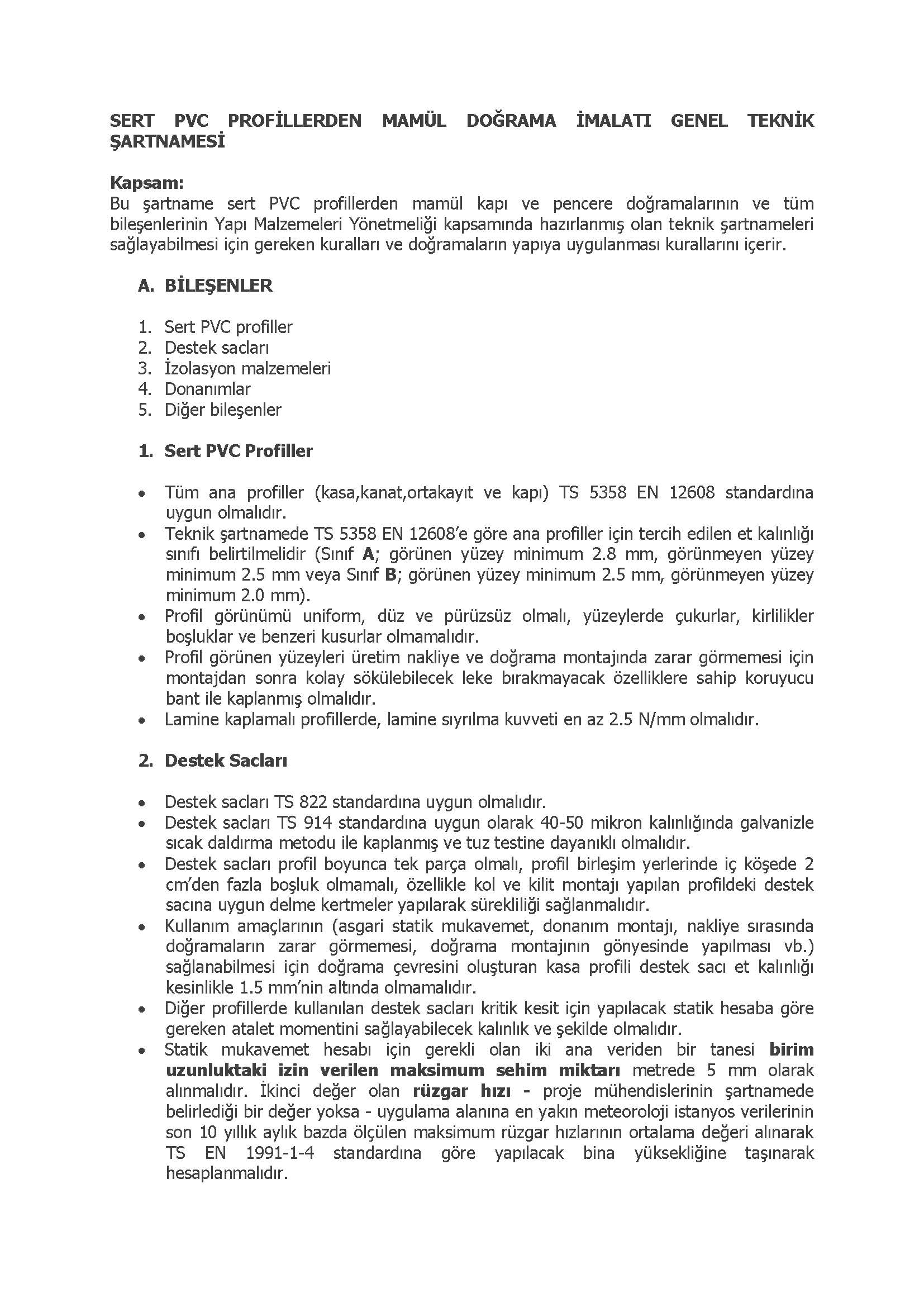

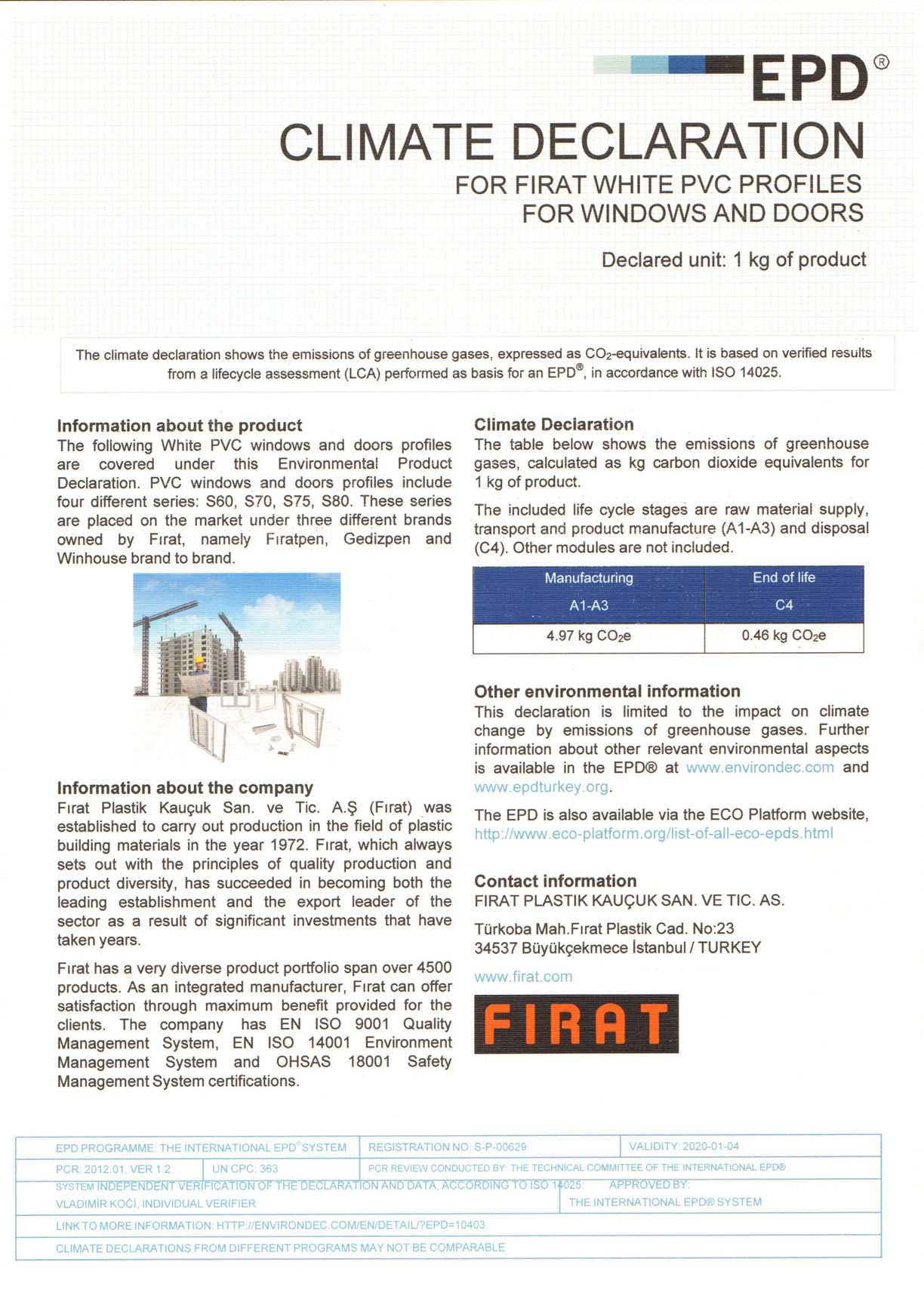

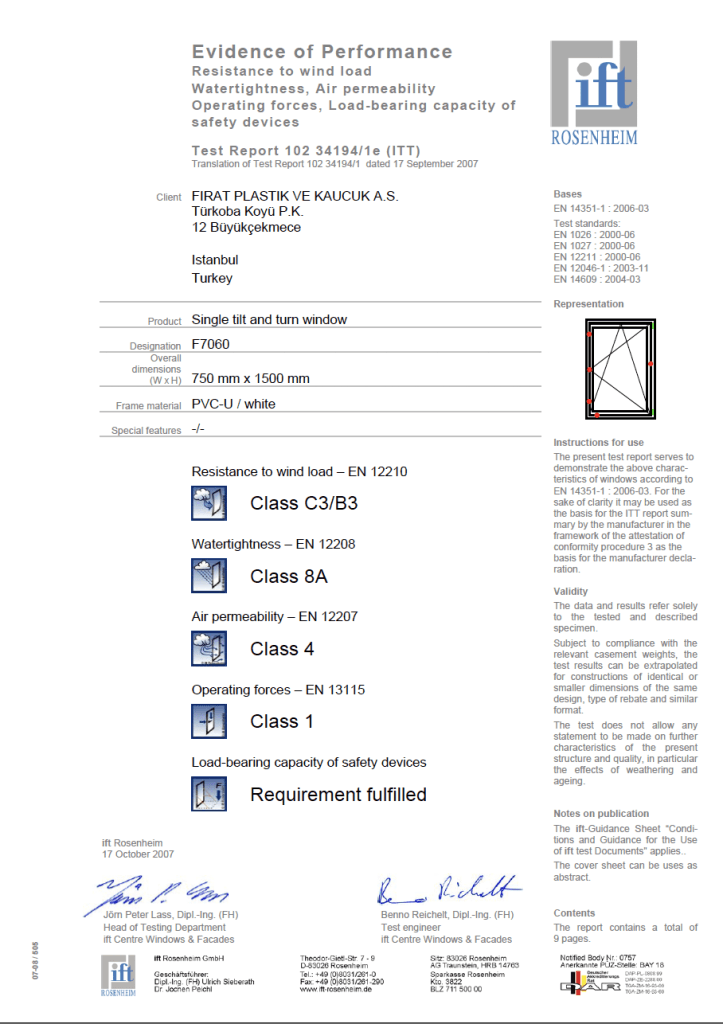

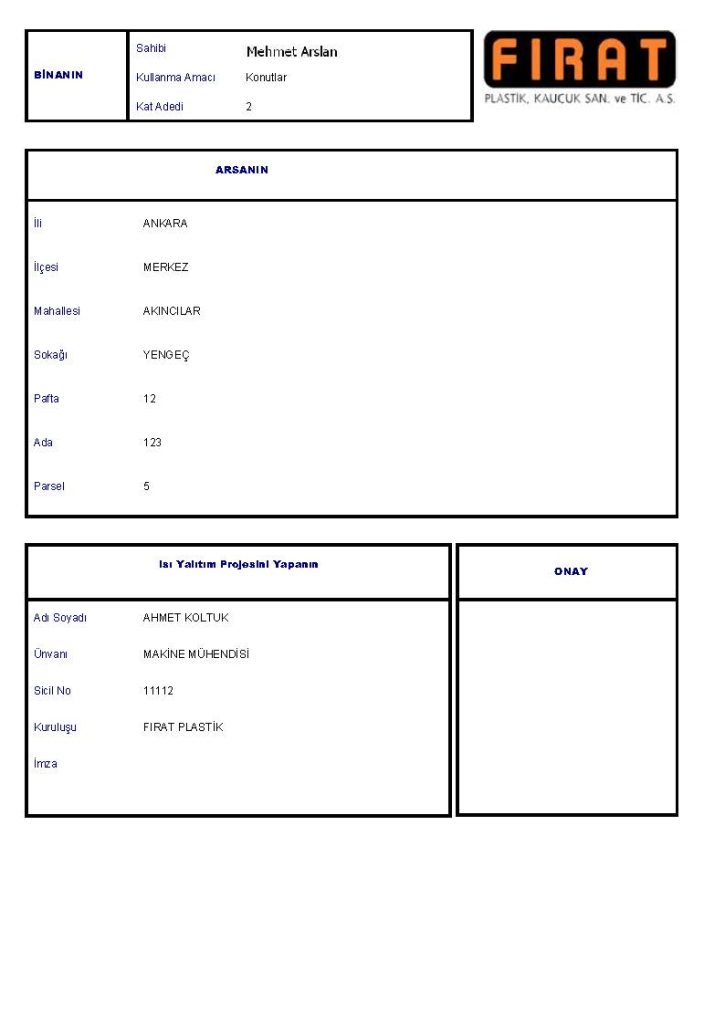

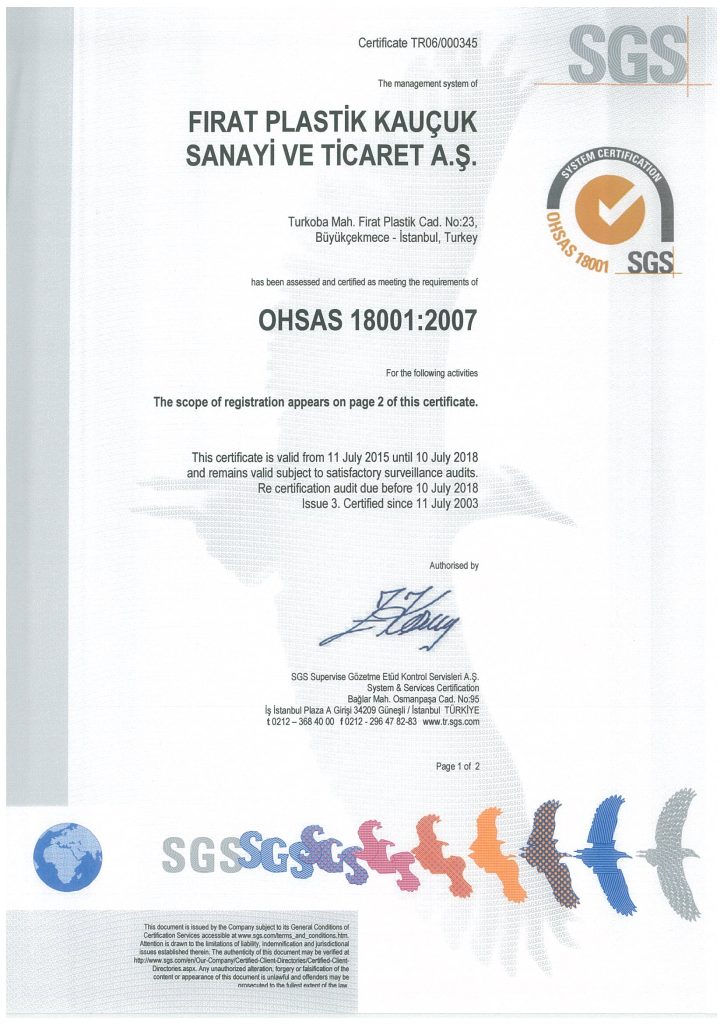

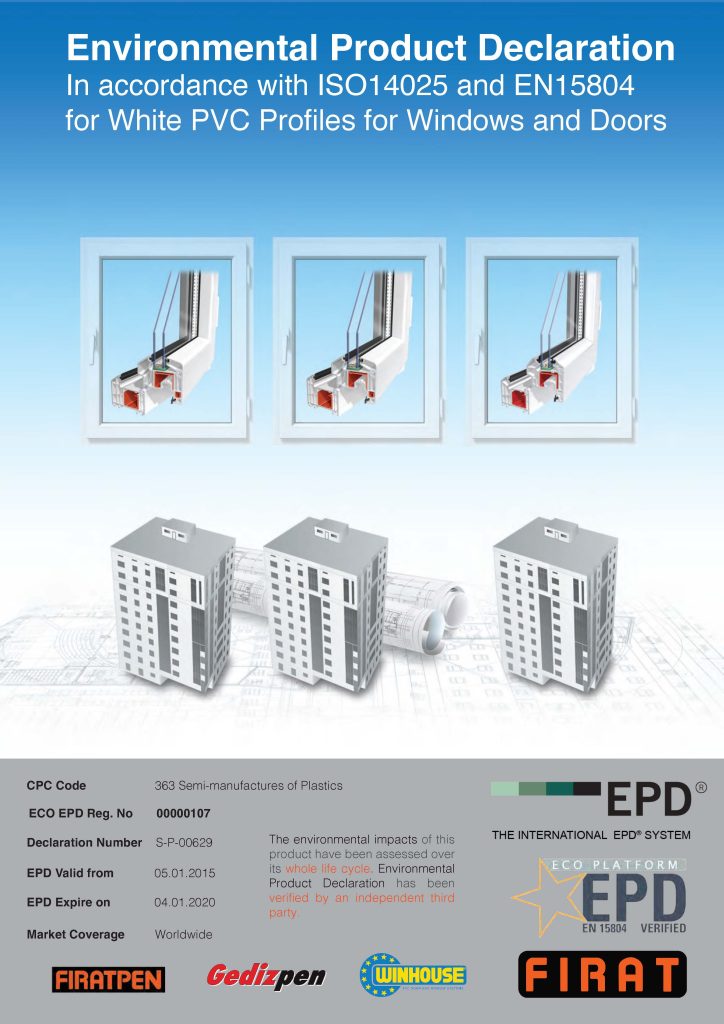

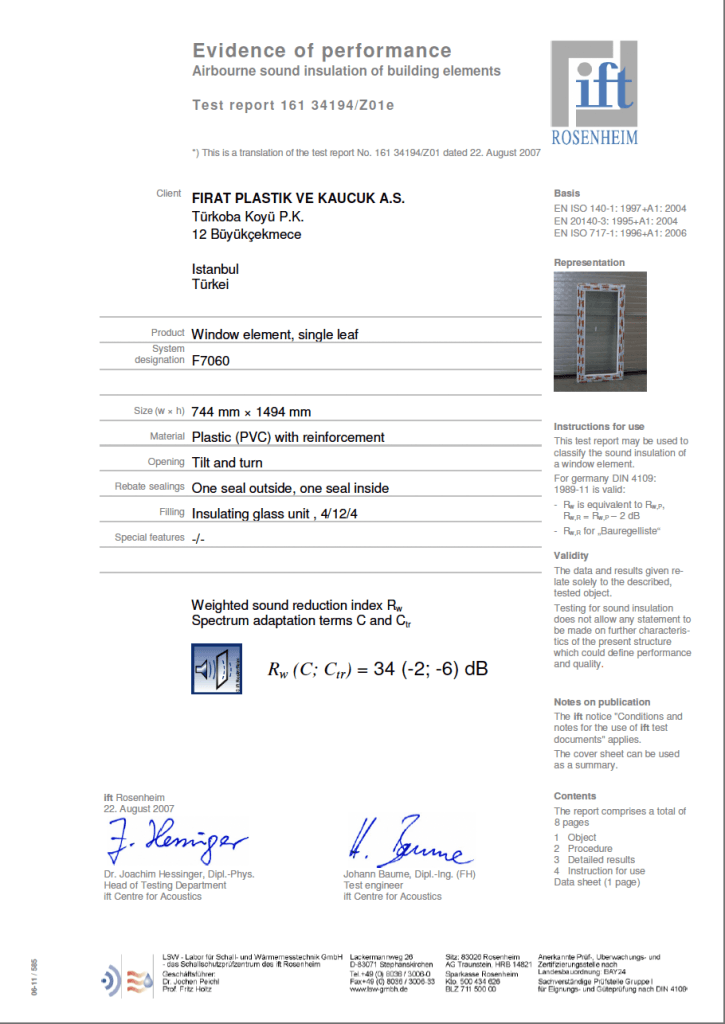

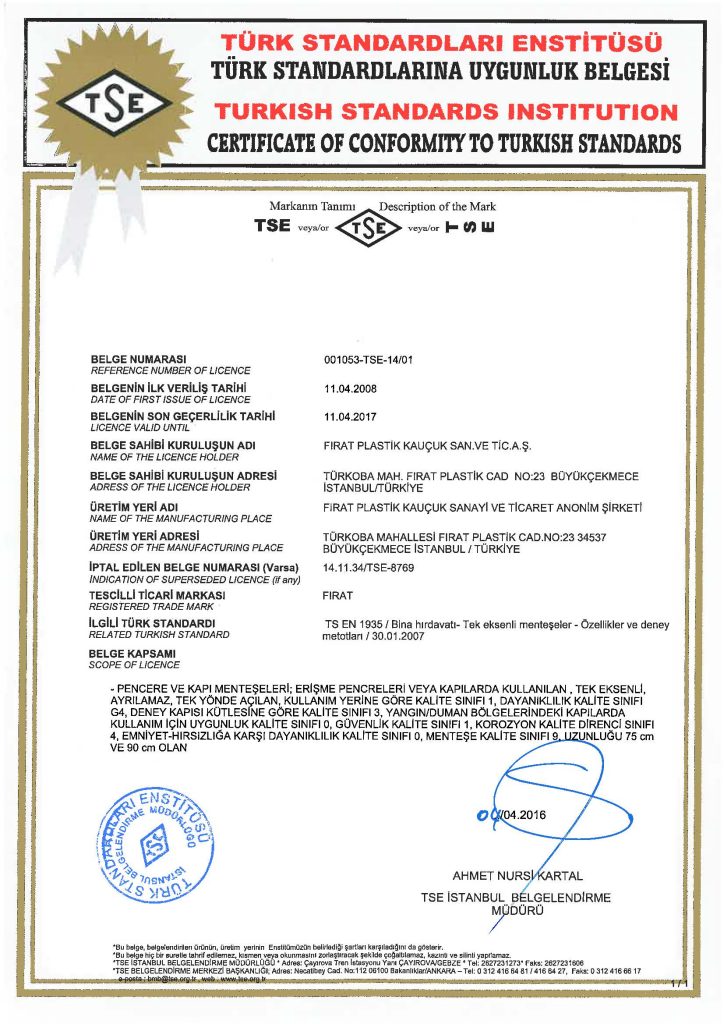

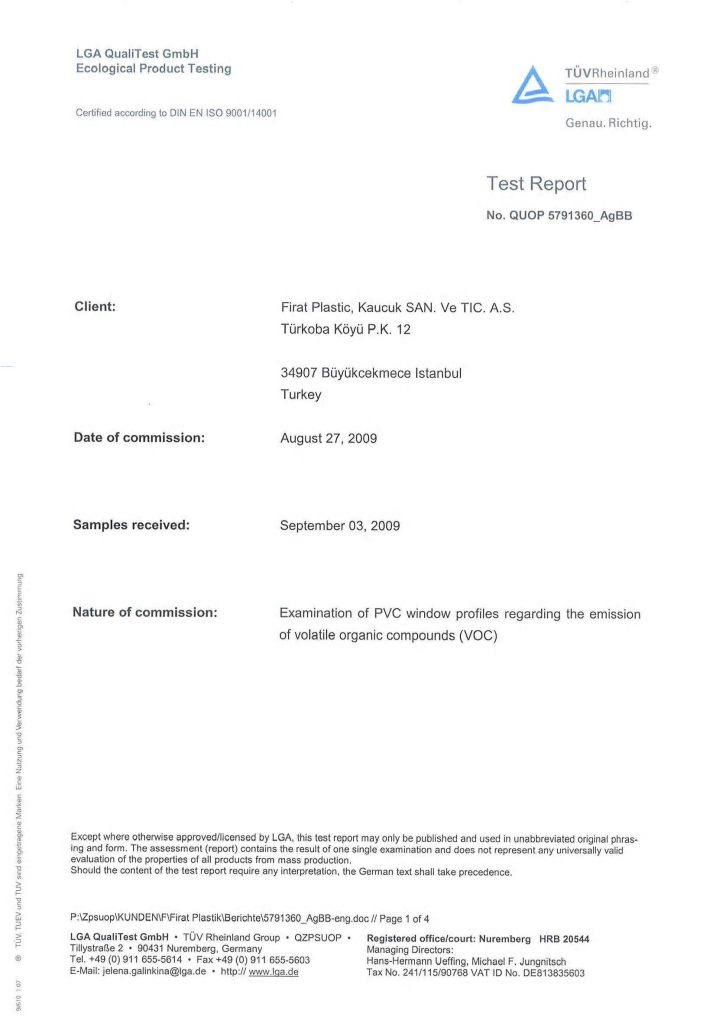

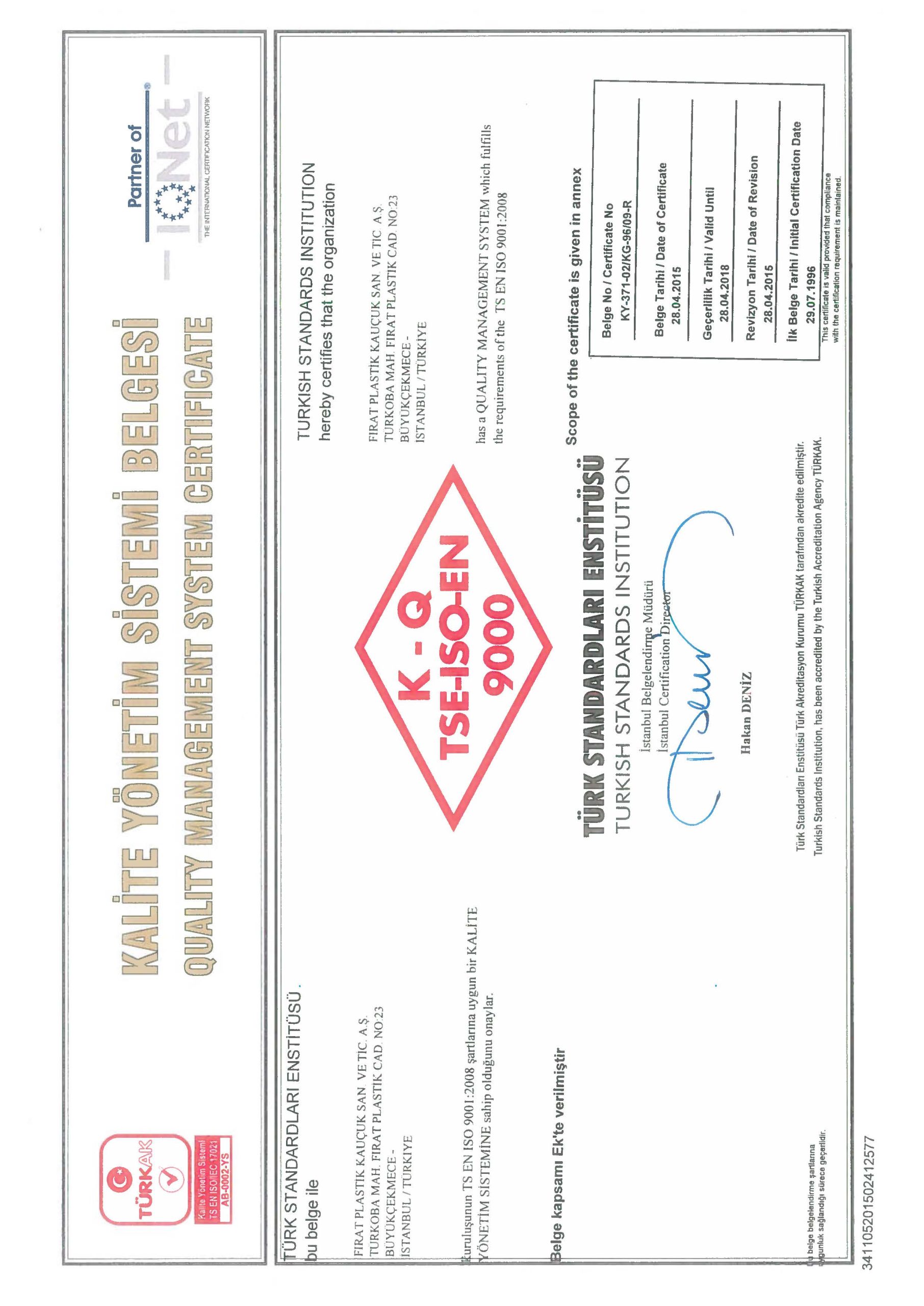

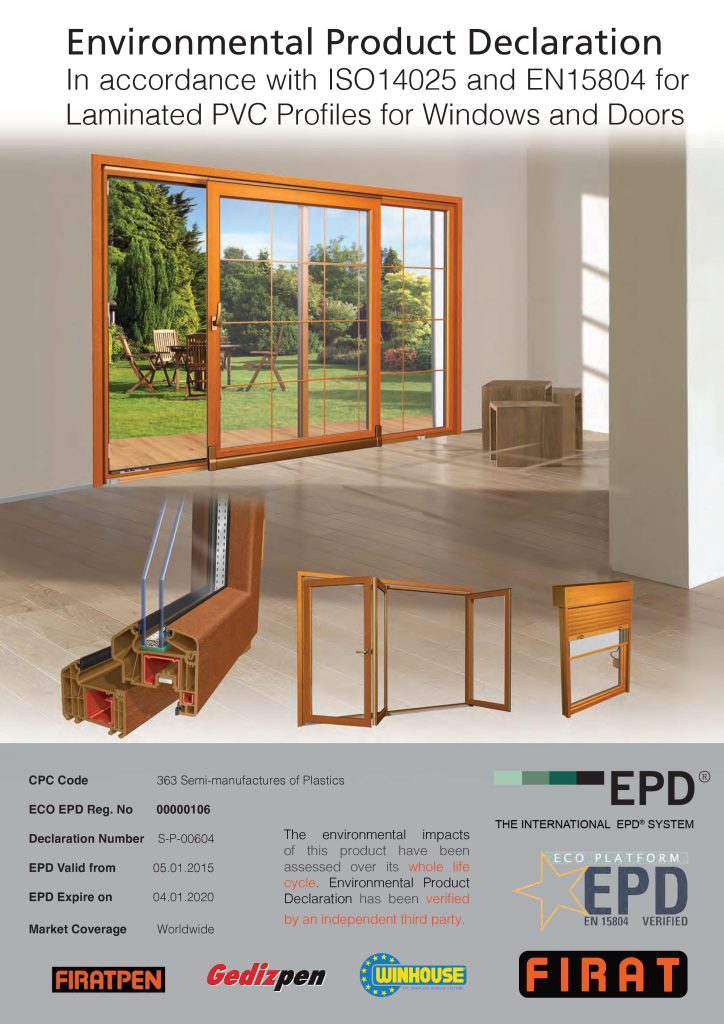

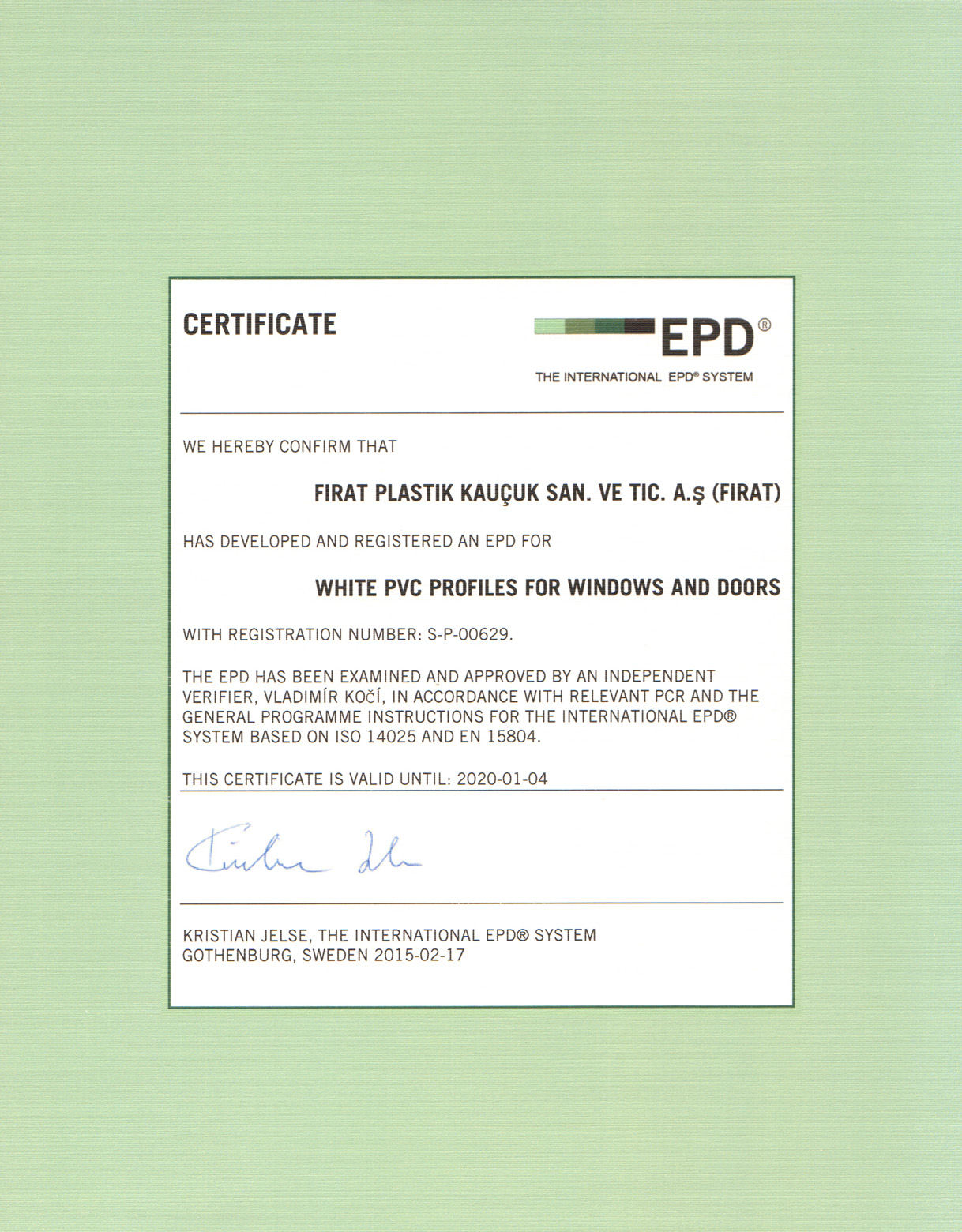

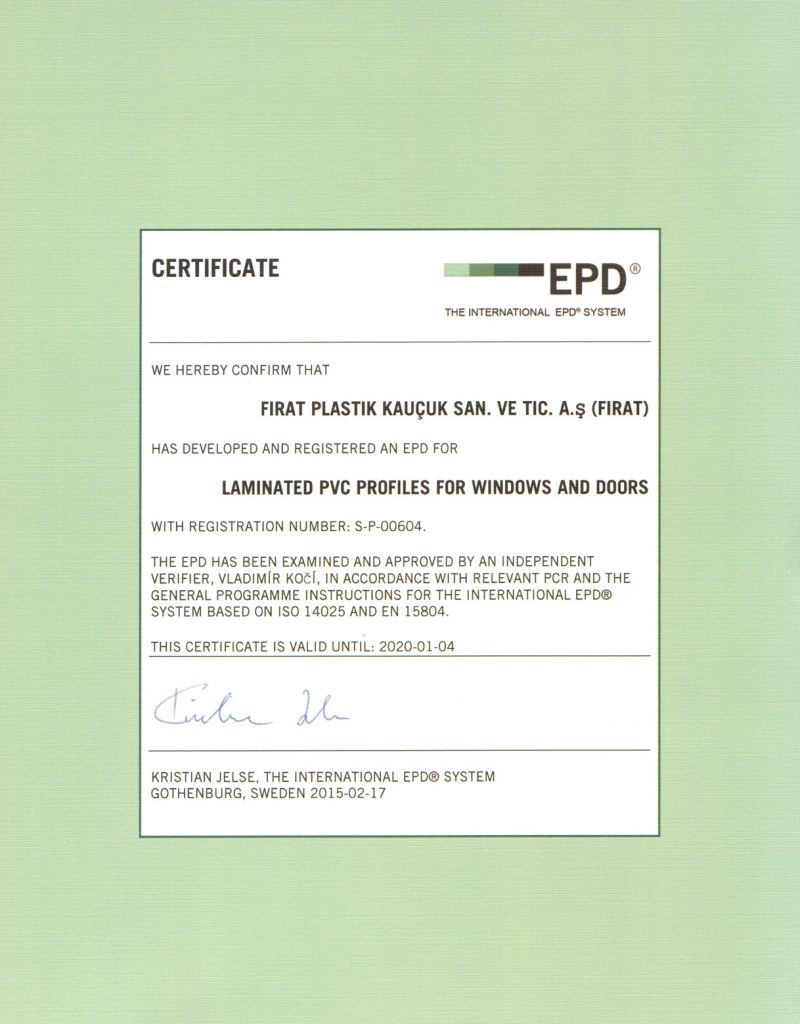

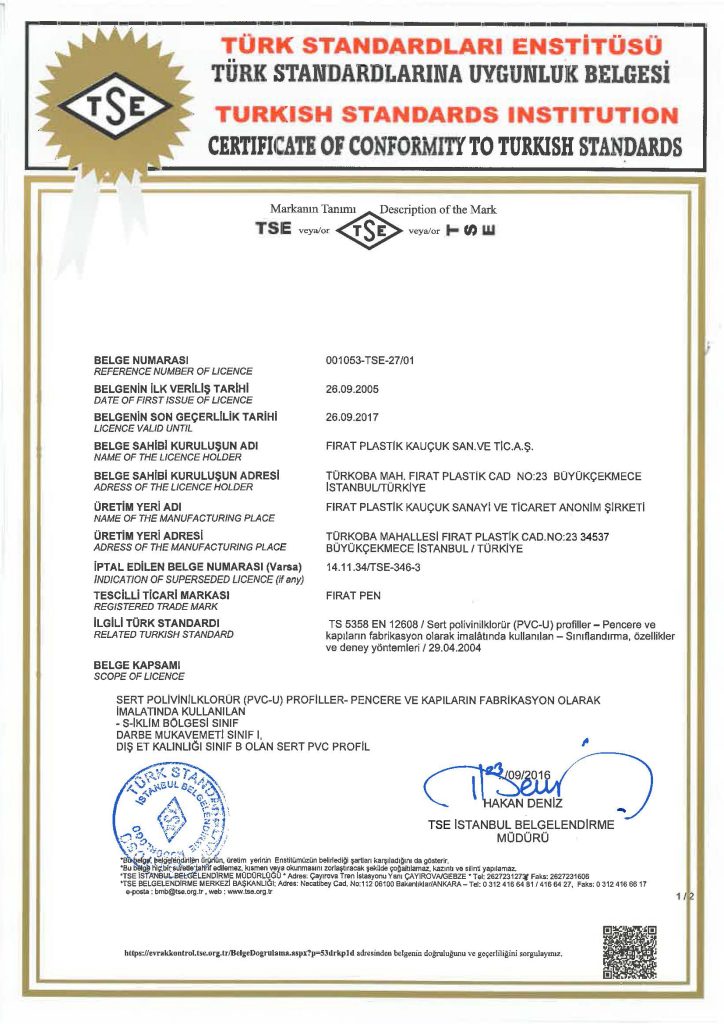

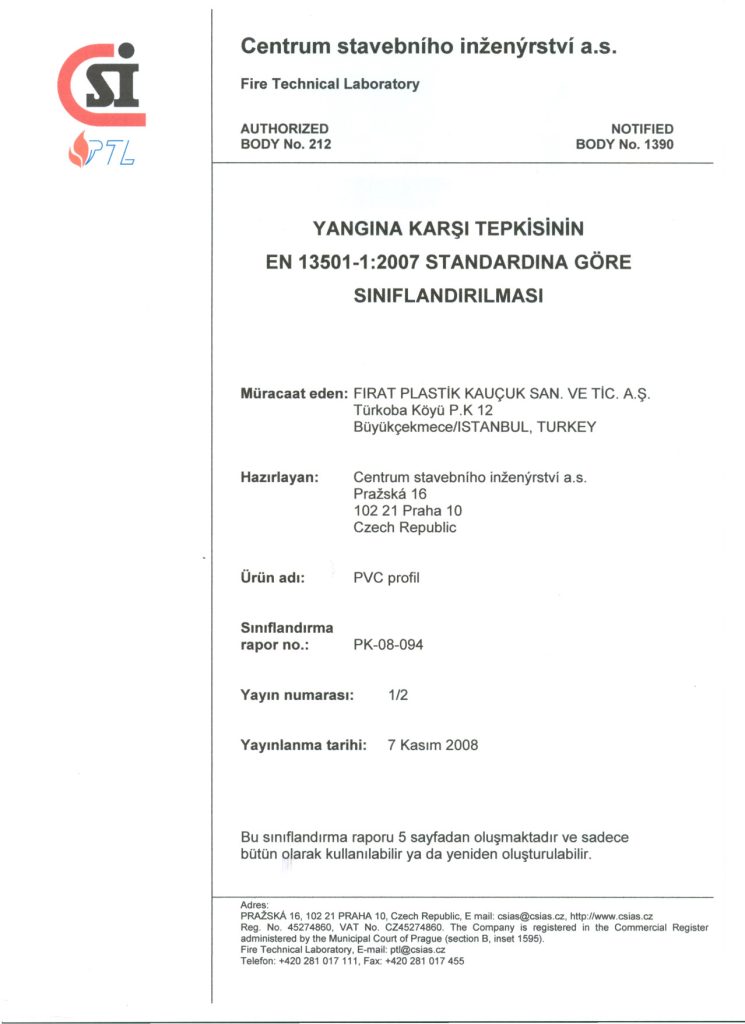

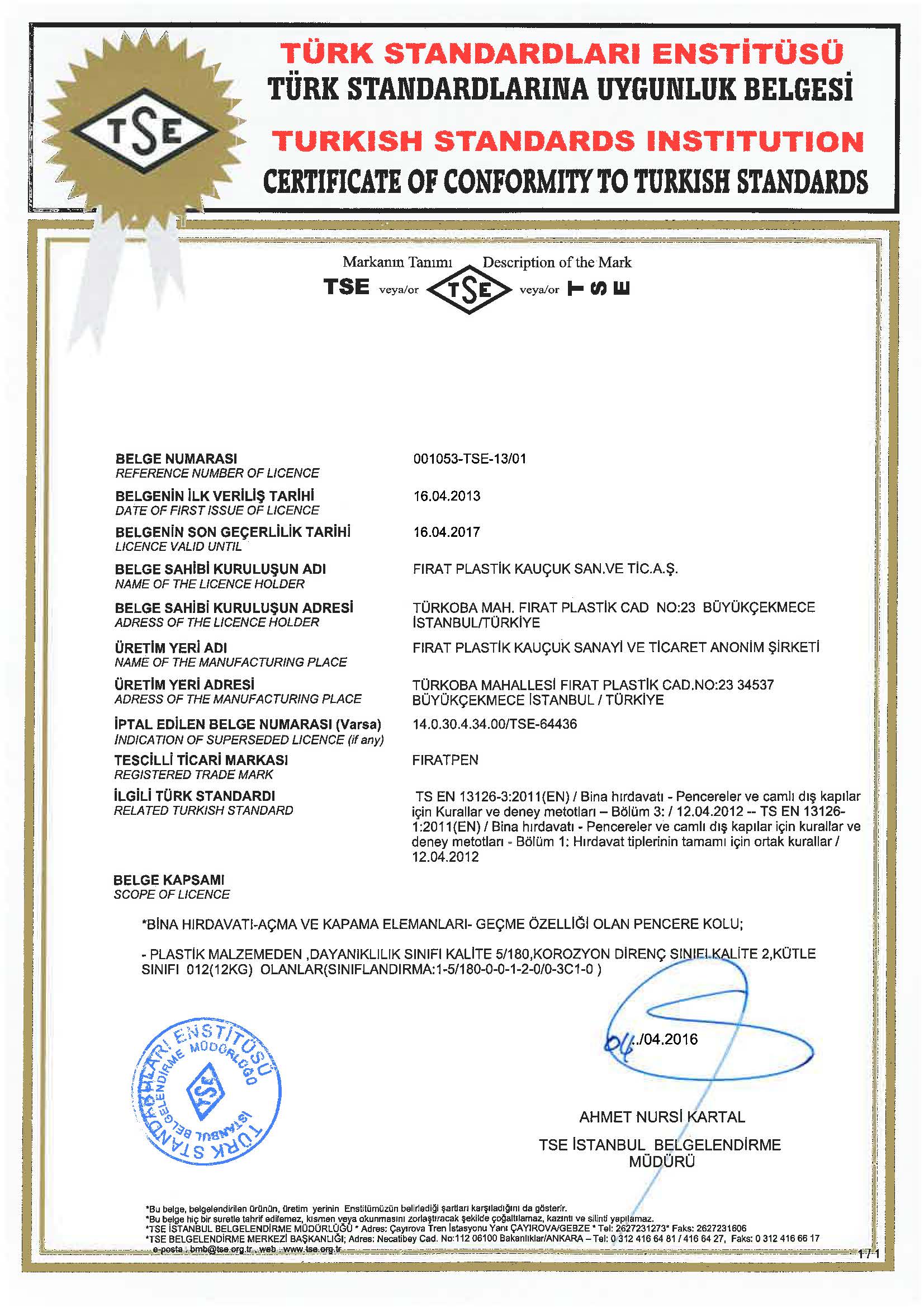

Quality Certificates & Technical Documents
Window and Door Details
PVC detail profiles used in pvc door and window systems are the pvc profile types used in common in Fıratpen, Winhouse and Gedizpen brands and series which are the pvc window and door systems brands of Fırat.
Detail profiles do not have to be used in pvc door and window systems. Detail pvc plastic profile is preferred by the plastic window practitioner in order to solve possible problems in the application of pvc doors and windows or to meet the demands of the end consumer. It can be used to organize the architectural appearance of the window or to increase its performance, or it can be used to solve an existing application difficulty or problem.
The fact that they do not distinguish between series and brands within Fırat enables them to find more application areas. In addition, since the detail profiles of different manufacturers can differ in size and shape, the product diversity of the sector increases.
Another advantage of detail profiles is that they are not only used in PVC door and window systems. They are used in different sectors such as construction, agriculture sector (greenhouse etc.), pharmaceutical and chemical industry. Detail profiles provide ease of use in different areas due to their corrosion resistance, long life and superior insulation values.
Fıratpen PVC Window and Door Systems with natural wood pattern coated with hot-melt lamination technique in accordance with international standards offer ideal solutions for your unique architectural and special decorative expectations with their rich coating options, aesthetic appearance and functionality.
We have added new colors to our Golden Oak, Gnarled Oak, Gnarled Mahogany, Cedar, Walnut, Gray and Anthracite wood patterned laminated options for your different tastes, projects and decoration alternatives. Your projects and houses are more colorful with our Antique Walnut, Snow White, Anodized Gray, Rustic Oak, Cream, Satin Gray, Midnight Blue, Dark Green, Eagle Black, Chestnut, Silver Gray, Juniper, Smoked, Metallic Gray and Hazelnut colors. You can contact our sales points and us via info@firat.com to meet our 21 different color options in total.
Fıratpen PVC Window and Door Systems with natural wood pattern coated with hot-melt lamination technique in accordance with RAL standards offer ideal solutions for your unique architectural and special decorative expectations with their rich coating options, aesthetic appearance and functionality.
We have added new colors to our Golden Oak, Gnarled Oak, Gnarled Mahogany, Cedar, Walnut, Grey and Anthracite wood patterned laminated options for your different tastes, projects and decoration alternatives. Your projects and homes are more colorful with our Antique Walnut, Snow White, Anodized Grey, Rustic Oak, Cream, Satin Grey, Midnight Blue, Dark Green, Eagle Black, Chestnut, Silver Grey, Juniper, Smoked, Metallic Grey and Hazelnut colors. You can contact our sales points and us to meet our 22 different color options in total.
Window Pattern Options Available in Our Stocks
When choosing between pvc door and window systems, it is necessary to consider 9 different factors that make up the systems.
All these factors affect the quality of pvc window systems more or less, but directly.
1. PVC Profile:
The first and most important condition for obtaining quality pvc joinery is to use quality pvc profiles. A pvc profile that fulfills the requirements of the standards, does not cause problems technically and during application, provides the required insulation values, and has effective and widely used quality certificates should be used. A pvc profile that meets these criteria is a prerequisite for a pvc joinery that meets the standards.
2. Support Sheet:
The biggest contribution of the support sheet to the pvc window is to form the skeleton and increase the strength. In addition, it has benefits such as preventing the structure from changing shape in the face of thermal changes, providing assembly strength and ease of connection, etc. The support sheet should be used in accordance with the shape of the PVC profile and it should not be neglected to apply a single piece of support sheet to each meter of each main profile possible in PVC joinery. Today, no other product has yet been developed that can replace metal support sheets one-to-one.
3. Gasket:
The most effective insulation material in PVC door and window systems is the gasket. Today, EPDM rubber and TPE plastic based seals are used.
4. Connection Elements:
Fasteners in PVC door and window systems gain importance according to the geometric shapes of doors and windows and their location. In the fastener group consisting of screws and connection wedges, metal (zamak) materials with high abrasion resistance and coating that are not affected by climatic conditions and corrosive factors should be used.
5. Accessories:
They are the mechanisms that form the moving parts in PVC door and window systems and enable the movement to occur. Systems with quality certificates, high corrosion resistance and ease of use should be selected. Measurement criteria must be strictly followed.
6. Assembly Materials.
These are the materials that ensure that the pvc joinery is mounted on the wall in a healthy way and fulfills its function. Materials that are long-lasting and will not cause strength weakness over time should be selected.
7. Glass:
They constitute the largest part in terms of area in PVC door and window systems. It is the most effective element for heat and sound insulation. Glasses that do not disrupt the architectural structure, do not overload the system, help the movement to be completed in a healthy way and have quality certificates should be used. Especially in double glazing systems, the preference for “insulating glass synergy” and “insulating glass comfort” has increased as they provide heat and sound insulation.
8. Extras:
Extras are all other requests of the end consumer that add to PVC door and window systems, visual improvement and performance enhancement. It can be defined as moldings, paneling, carpentry, marble and special opening systems.
9. Labor:
One of the biggest factors affecting the quality of pvc window systems is workmanship and assembly. It is possible to make a very bad pvc joinery – plastic window from a first class pvc profile, as well as a good pvc joinery from a bad pvc profile.
