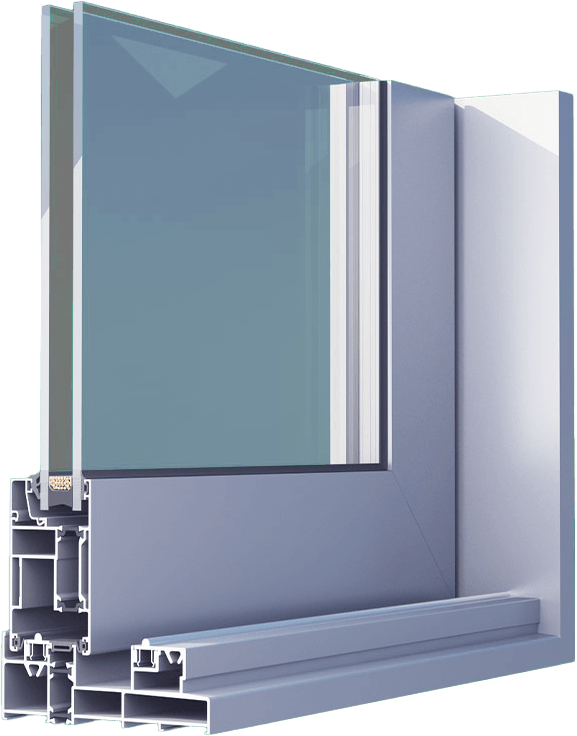

Symbol of High Performance: UnIque SlIde 2
The system allows the use of glass up to 46 mm in the frame and 40 mm in the sash.
The system, which provides a minimum profile view with only 25 mm frame profile that can be collected 90% cut, is also one of the successful Lift & Slide sliding systems in the sector.
Unique Slide sliding system, designed with the principle of minimum profile usage and easy manufacturing and assembly possibilities, maintains its different place among its sector competitors with the innovations it brings. With alternative profiles with a visible width of 50 mm at the edge, users are provided with a narrow edge option that provides maximum panoramic view. 18 mm polyamide barrier structure and EPDM wicks provide superior thermal performance. With its Euro-Groove groove structure, it is compatible with different brands and types of opening accessories. The system allows locking from multiple points.
UNIQUE SLIDE 2
Teknik Özellikler
| Sistemin Görünür Genişliği | Yan Kasa | 25 mm |
| Üst Kasa | 52 mm | |
| Alt Kasa | 40 mm | |
| Kanat | 98 mm | |
| Kenet Görünür Yüzeyi | 101-50 mm | |
| Sistemin Kasa Derinliği | Çift Ray | 140 mm |
| Tek Ray | 140 mm | |
| 3 ray | 213 mm | |
| 4 Ray | 286 mm | |
| Sineklikli Ray (Çift Ray) | 181 mm | |
| Sistemin Kanat Derinliği | 56 mm | |
| Cam Kalınlığı | Kasa | 42 mm’ye Kadar |
| Isı Yalıtımı | Kasa | 15 mm (Polyamid) |
| Kanat | 18 mm (Polyamid) | |
| Maksimum Kanat Ağırlığı | 300-400kg | |
| Maksimum Kanat Yüksekliği | 3300 mm | |

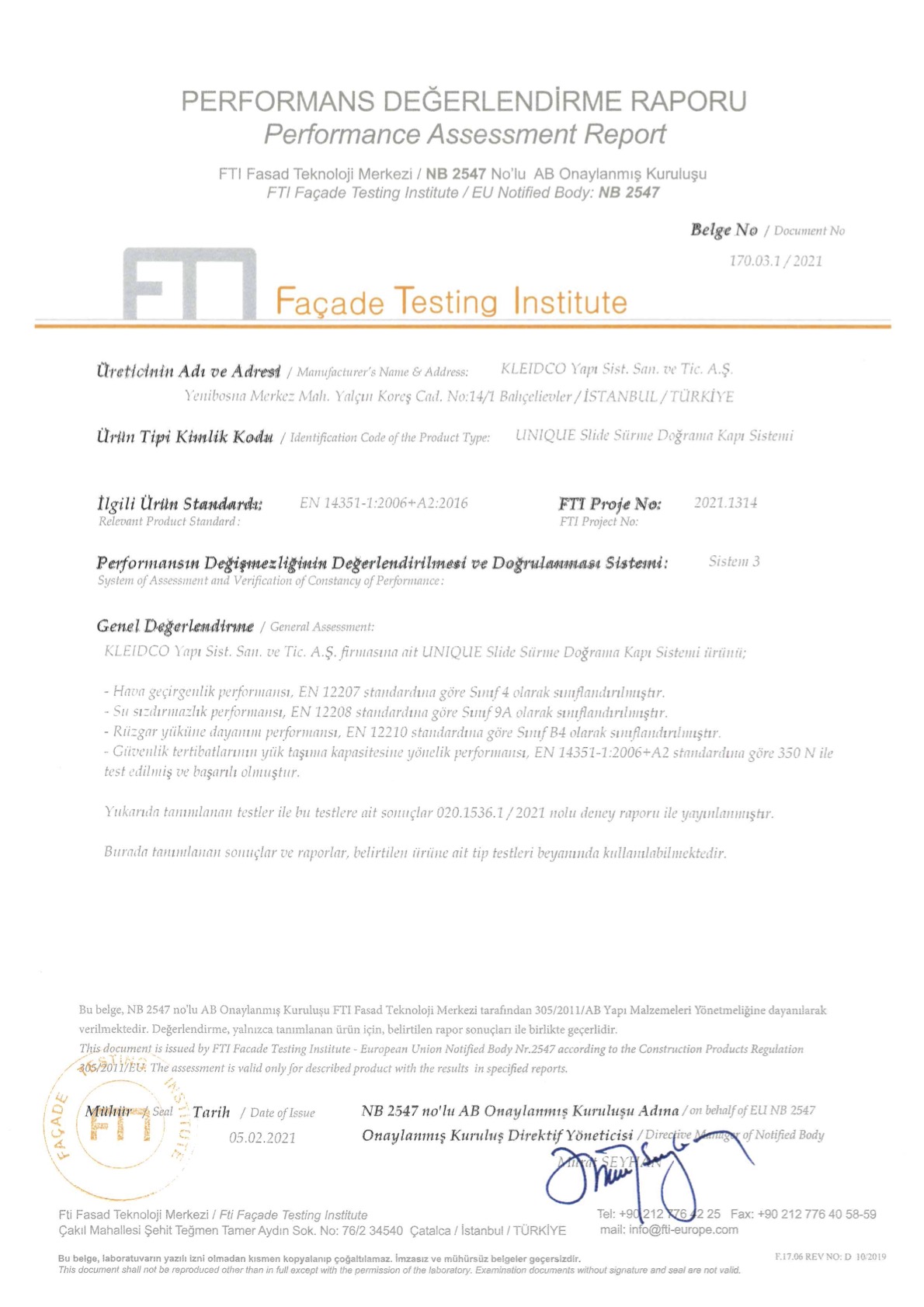

Performans Değerleri
| Performans Kriteri | Test Standartları | Sınıflandırma |
| Hava Geçirimsizlik | TS EN 12207 | Class 4 – 600 Pa |
| Su Sızdırmazlık | TS EN 12208 | Sınıf 9A – 600 Pa |
| Rüzgar Yükü Dayanımı | TS EN 12210 | Class B4 1600 Pa |
| Güvenlik Yüküne Dayanım | TS EN 12210 | 2400 Pa |
| Termal Isı Yalıtımı | EN 10.077-2 | Npa |
| Akustik Performans Değeri | EN 717-1 | Npa |
| Hırsızlığa Karşı Dayanım | TS EN 1627-1630 | RC1/RC2 |

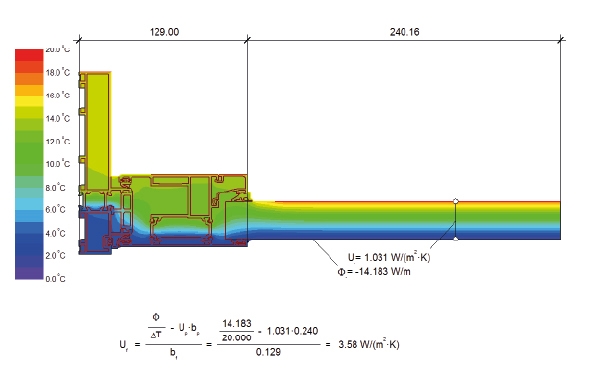

Isı Grafiği

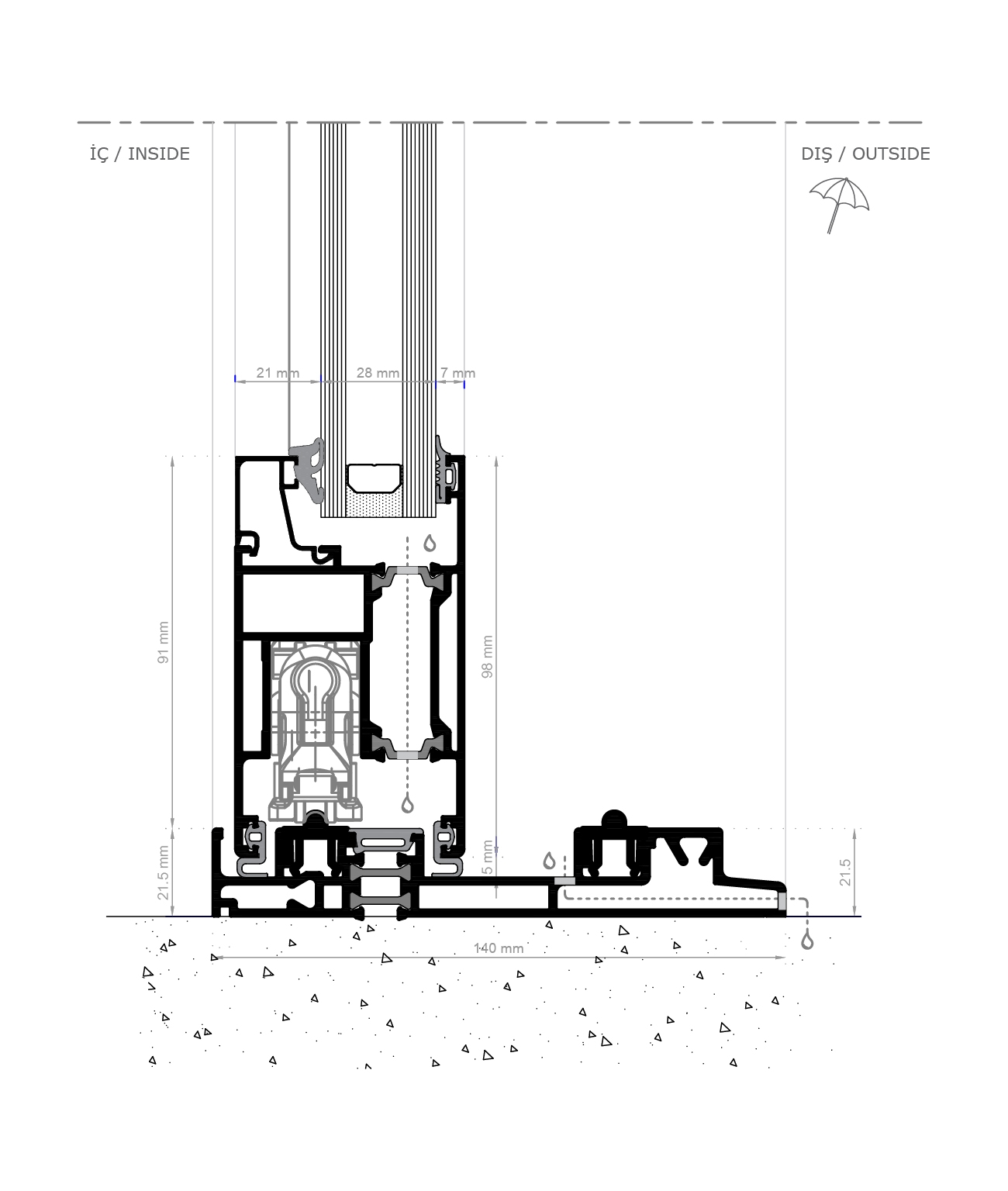

Sistem Opsiyonları
Certificates
SARAY Aluminum broke new ground in its sector by obtaining EPD certificates for its profile and panel products in compliance with EN 15804 European norm. EPD certificates are required by many green building evaluation and certification systems such as LEED, BREEAM, DGNB and ÇEDBİK.
SARAY Döküm ve Madeni Aksam Sanayi Turizm A.Ş. is breaking new ground with its innovations in the construction sector. Saray Aluminum has added the EN 15804 European norm-compliant “Environmental Product Declaration (EPD)” documents, which are published internationally through The International EPD System and valid in all markets, for PVC and Aluminum profile and Aluminum composite panel products, to its superior quality and standard certificates in the sector so far.
Saray, which has received EN 15804 – Sustainable Construction Materials norm-compliant EPD certificate for A2 class fireproof composite panels for the first time in Turkey, creates awareness in Europe and Turkey with its environmentally sensitive responsibility approach due to its position among the top 200 largest industrial companies in Turkey and its position at the forefront of the sector.
Saray, which produces in a total closed area of 90,000 square meters in its facilities in Istanbul and Çerkezköy, has successfully completed the EPD certificates obtained for A2, B1 and B2 fireproof class Aluminum Composite Panels (EPD Registration No: S-P-00834), Aluminum Extrusion Profile (EPD Registration No: S-P-00833), and PVC Profile (EPD Registration No: S-P-00832) products under the consultancy of Metsims Sustainability Consulting.
Saray Aluminum Composite Panels, Aluminum Extrusion Profiles and PVC Door & Window Profiles, each of which are innovative products in A2, B1 and B2 fireproof class according to TS standards, are among the most preferred brands in the construction sector with their high quality, quality certificates and EPD certificates.
EPDs are documents defined according to ISO 14025 that quantitatively evaluate and declare the environmental performance of a product according to predetermined categories (raw material extraction, energy use and efficiency; material and chemical content; emissions to air, water and soil; waste generation) on the basis of environmental impact parameters specified in the ISO 14040/44 LCA standard. This method of declaration, which takes into account the ecological footprint of economic activities within the scope of LCA and the various emissions and waste values that occur during the production process, is independently verified by international experts and is valid worldwide. EPD Certificates, known as Type III type environmental labeling, are required by many green building assessment and certification systems such as LEED, BREEAM, DGNB and ÇEDBİK while ensuring the dissemination of building products with environmental impact assessment.
Firmamızda, ISO 9001:2000 standardının gereklerini yerine getiren ve diğer yönetim fonksiyonları ile birlikte planlanan ve geliştirilen müşteri ihtiyaçlarını yerine getiren etkili ve yeterli bir Kalite Sistemi kurulmuş olup ISO 9001 Kalite Güvence Belgemiz bulunmaktadır. Böylece firmamız,;
- Bütün faaliyetlerini müşterilerinin memnuniyeti için yoğunlaştırmayı,
- Müşterilerine sağladığı ürünlerin ve hizmetlerin kalitesini sürekli olarak geliştirmeyi,
- Ürünleri zamanında teslim etmeyi,
- İsraf ve ziyanı ortadan kaldırarak ürünlerini ve hizmetlerini, en düşük maliyetle üretmeyi,
- Müşterilerinin ihtiyaçlarını karşılayacak nitelikte ürün üretmeyi esas olarak benimsemiştir.
Seltoy Ltd Şti bayisi olduğu Saraygrup, çevresel sorumluluklarının bilincinde; ürünün gerçekleştirilmesinden sevkiyata kadar geçen tüm aşamalarda, faaliyetlerinin çevre boyut ve etkilerini belirlemek ve bu boyutların ortaya çıkmasını önlemek amacıyla yöntemler uygulamaktadır. Saraygrup tüm faaliyetlerinin çevre kirliliğine neden olmaksızın yürütülmesi konusunda hassasiyet göstermektedir. Bu amaçla;
- Çevre ile ilgili tüm mevzuatlara uymayı,
- Doğal kaynakları optimum düzeyde kullanmayı,
- Kullanılan hammadde ve yardımcı maddelerde çevre kriterlerine uymayı,
- Kirliliğin önlenmesini, atıkların azaltılmasını ve maksimum geri dönüşümünü sağlamayı,
- Çalışanlarını çevre konusunda vereceği eğitimlerle bilinçlendirmeyi,
- Yeni yatırımlarda çevre faktörünü göz önünde bulundurmayı, ilke edinmiştir.
About Aluminum Window and Door Systems
Properties sought in the materials used in Aluminum Joinery
The first is the quality of all the materials used in the window, especially the aluminum profiles and the plastic insulation profiles used to prevent the profiles from conducting heat between the internal and external environments.
Aluminum profiles
A Certificate of Conformity to Turkish Standards related to TS EN 12020-1 and TS EN 12020-2 standards must be sought from the aluminum profile manufacturer. This certificate is issued for EN AW 6060 and EN AW 6063 alloy groups and for extrusion profiles with and without thermal barrier from precision alloyed aluminum material.
TS EN 12020-1 (02.03.2010) Aluminum and aluminum alloys – Extruded precision profiles made of most aw- 6060 and most aw- 6063 alloys
Technical inspection and delivery conditions
TS EN 12020-2 (02.03.2010) This standard covers the size and shape tolerances of precision profiles extruded from EN AW-6060 and EN AW-6063 alloys with and without thermal barrier.
The EN 15088 standard for the aluminum sector includes general requirements for aluminum and aluminum alloys to be used in the construction industry. EN 15088 is for manufacturers of aluminum and aluminum alloys (profiles, etc.) for use in construction works. Conformity with the Construction Products Directive (CPD) and consequently CE marking is a legal obligation in accordance with Law No. 4703 to offer the product to the European and Turkish market.
The wall thickness of the profiles to be used in joinery should be evaluated in terms of wind and bearing loads, but frame, middle register, adapter and sash profiles thinner than 1.8mm are not recommended as they cannot hold healthy screws.
For aluminum profiles used in joinery, 6060-T5 or 6063-T5 (alloy-heat treatment) should be used.
T5: It means cooled and artificially aged after hot forming process.
Accordingly, the profiles are cooled after the extrusion process and then put into artificial aging (thermal) furnaces.
Features to be sought in heat insulated profiles
Heat insulation barriers made of polyamide material with 25% glass fiber reinforcement should be used in heat insulated profiles. In the Turkish market, polyamide is generally used only when necessary (because it can enter the paint oven) and although PVC barriers are preferred because they are cheaper, polyamide thermal barriers should be preferred.
Although different materials are used as thermal insulation barriers, polyamide thermal insulation barriers are the most suitable material to be used as thermal insulation barriers since their thermal elongation coefficients are the same as aluminum and their mechanical values are high. Polyamide thermal insulation barriers are 25% glass fiber reinforced as standard.
It is recommended that thermal insulation barriers should be at least 18mm. Would you like to learn how the choice of thermal insulation barrier affects thermal insulation?
Features to be sought in heat insulated profiles
Heat insulation barriers made of polyamide material with 25% glass fiber reinforcement should be used in heat insulated profiles. In the Turkish market, polyamide is generally used only when necessary (because it can enter the paint oven) and although PVC barriers are preferred because they are cheaper, polyamide thermal barriers should be preferred.
Although different materials are used as thermal insulation barriers, polyamide thermal insulation barriers are the most suitable material to be used as thermal insulation barriers since their thermal elongation coefficients are the same as aluminum and their mechanical values are high. Polyamide thermal insulation barriers are 25% glass fiber reinforced as standard.
It is recommended that thermal insulation barriers should be at least 18mm. Would you like to learn how the choice of thermal insulation barrier affects thermal insulation?
Surface treatments (Anodizing, Electrostatic Powder Coating, Wood Pattern Coating)
Profiles used in architectural aluminum window, door and facade systems are produced raw and then anodized, electrostatic powder coating or wood pattern coating process is applied to obtain the desired surface appearance.
Anodized:
TS 4922 (27.10.1986) Surface treatment of metallic materials – Anodic oxidation (anodizing) of aluminum and formable aluminum alloys, technical specifications
Qualanod Quality Certificate used in European countries should be sought. Qualanod is a comprehensive standard for sulfuric acid based anodizing of aluminum and many manufacturers in Turkey have this certificate. Manufacturers with this certificate are regularly audited.
Electrostatic Powder Coating:
Qualicoat Quality Certificate used in European countries must be sought.
Complementary parts
For hinges (TS 4922), EPDM seals and other complementary parts, the relevant standards must be observed. Corner wedges and serge connections must be fully assembled.
Metals play an important role in the development of civilization. Few metals play as important a role in this development process as aluminum. With its unique properties, aluminum has become more important than many materials known since ancient times, such as wood, copper, iron and steel. Since the second half of the 19th century, aluminum has been a very young metal produced on an industrial scale, but today it is used in greater quantities than all non-ferrous metals such as copper and its alloys, lead, tin and zinc combined.
The general properties of aluminum are summarized below:
- Aluminum is light. It weighs only a third of the same volume of steel.
- Aluminum is resistant to weather conditions, foodstuffs and many liquids and gases used in daily life.
- Aluminum has a high reflectivity. With the contribution of its silvery white color to this feature, it has an attractive appearance for both interior and exterior architecture. This beautiful appearance of aluminum can be maintained for a long time with applications such as anodic oxidation (anodizing), lacquers, etc. In many applications, even a natural oxide layer is sufficient.
- The strength of various aluminum alloys is equal to or higher than that of ordinary structural steel.
- Aluminum is an elastic material. Therefore, it is resistant to sudden impacts. In addition, its durability does not decrease at low temperatures. (The strength of steels against sudden impacts decreases at low temperatures).
- Aluminum is an easy metal to process. It can be made into foil or wire with a thickness of less than I/100 mm.
- Aluminum conducts heat and electricity as well as copper.
As you know, aluminum is not a very suitable material for thermal insulation. However, the aluminum profiles used in aluminum windows are thermally partitioned profiles. In thermally segmented, that is, thermally insulated aluminum profiles, the aluminum profile parts in contact with the interior and exterior are separated from each other by plastic barriers.
Although thermally insulated profiles started to be produced in the world in the early 1970s, window applications in Turkey in the early years without insulation and/or missing details and complements caused misperceptions such as “aluminum conducts heat”, “aluminum windows do not have good insulation”, “aluminum windows have sweating problems”. However, especially today, heat-insulated windows have extremely good thermal insulation values and do not look like plastic windows in this regard.
On the other hand, can we say that PVC is a substitute for aluminum? There are many situations where plastic (PVC) joinery cannot be used instead of aluminum. In this respect, the following advantages of aluminum still make aluminum indispensable for architectural projects:
- Aluminum joinery is much more durable, strong, stable and long-lasting than PVC-u joinery. While the lifespan of an aluminum window is shown as 40 years, PVC-u windows need to be replaced every 25 years.
- Unlike vinyl (PVC-u) windows, aluminum windows and doors retain their mechanical properties at low and high temperatures.
- Since aluminum joinery is durable, it allows the use of frames with less visible width. Therefore, you have the chance to make maximum use of daylight.
- While solutions can be produced in limited sizes with wooden and plastic joinery, you can pass wide openings with aluminum windows. Aluminum joinery can be used safely in openings along the floor such as French balconies, shop windows, high-rise buildings where resistance to wind load is very important, and high floors.
- Their resistance against wind loads is strong, they are systems with high moment of inertia.
- 100% recyclable, natural and environmentally friendly. 95% energy saving is achieved in recycling. Does not contain toxic and carcinogenic substances such as lead, mercury etc.
- It does not release toxic gases in a fire. Aluminum windows comply with fire regulations. There is a requirement to use aluminum joinery in the specifications of the Ministry of Public Works, especially in hospital and school projects. In addition to heat resistance, it is an important feature of insulated aluminum windows that they do not emit sparks and toxic gases. PVC-u windows, on the other hand, emit life-threatening acid salt gases and dioxin gases in case of fire.
- Aluminum has a natural anti-corrosion coating. In addition, oxidation (corrosion) is prevented by anodizing (controlled oxidation). It is highly resistant to weather conditions.
- They are much easier to clean and maintain than wood and vinyl (PVC-u) windows. Vinyl windows need to be wiped with alkaline detergents every 6 months to restore their original appearance. Aluminum, on the other hand, can be cleaned even by rain.
- They provide extremely good thermal insulation. You can design a window with Uw = 1.1 W/m2K. Thermal insulation barrier is used for thermal insulation in aluminum windows. Read How to improve thermal insulation in windows. Absolutely no perspiration. Why does perspiration occur?
- There is a wide range of window styles and window opening options.
- It allows the production of sliding doors and windows with wide openings.
- The natural color of metal creates a sense of quality and adds aesthetic appearance to projects. However, when desired, it is also possible to use the surfaces facing the interior and exterior environments in a way to provide integrity in projects by subjecting them to separate surface coating.
Features sought throughout the aluminum joinery system and window
After the correct identification of aluminum profiles, composite aluminum profiles with thermal insulation barrier installation (composite), EPDM wicks and all other complementary parts, another stage is to determine which conditions (air impermeability, waterproofing, resistance to wind load, thermal insulation, noise prevention, etc.) the relationship between these parts in the system is desired to fulfill on the basis of which minimum values. If the joinery systems have already been subjected to these tests, they will be selected accordingly and even the adequacy of the system will be tested on a mockup during the application phase.
Criteria to be followed during Aluminum Joinery Installation
- In order to prevent the sashes from sagging, wedging principles should be followed when installing the glass.
- Aluminum profiles should have protective tapes on their visible surfaces and should be protected until after assembly.
- The wicks must be made of EPDM material and must be glued at the corners. Special adhesives are recommended for EPDM.
- Water drainage holes must be drilled and covers must be fitted.
- Corner wedges should be of the same alloy as the aluminum profiles, placed by applying epoxy and pressed with a corner press.
Window and Door Details
Detail profiles do not have to be used in aluminum door and window systems. Detail aluminum profiles; It is preferred by the Aluminum window practitioner in order to solve possible problems in the application of aluminum doors and windows or to meet the demands of the end consumer.
It can be used to organize the architectural appearance of the window or to improve its performance, as well as to solve an existing application difficulty or problem.
Another advantage of detail profiles is that they are not only used in aluminum door and window systems. They are used in different sectors such as construction, agriculture sector (greenhouse cultivation etc.), pharmaceutical and chemical industry.
Detail profiles provide ease of use in different areas due to their corrosion resistance, long life and superior insulation values.
